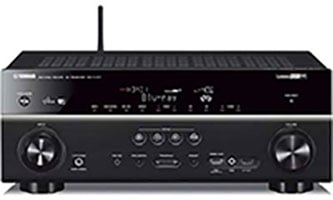

The RX-V777BT receiver has built-in Wi-Fi and wireless direct compatible for simple set up, all of the components feature the same quality design and high-tech options for your home entertainment system. This model would be a great addition to your entertainment systems.
Back of receiver has a switch for 110/120 volts and 220/240 volts. Please select the voltage before using
7-channel powerful surround sound
110 W per channel (8 ohms, 1 kHz, 0.9% THD, 2-ch driven)
95 W per channel (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2-ch driven)
Aluminium front panel for enhanced rigidity
HDMI (6 in / 2 out) with 4K Ultra HD upscaling, 3D, Audio Return Channel and MHL support
The latest HDMI version support for 4K 50 / 60p input
AirPlay(R), Pandora(R), Rhapsody(R), Spotify, SiriusXM Internet Radio music streaming service and AV Controller App
HTC Connect(TM) for music streaming from HTC Connect compatible smartphones
HDMI input on front panel, USB digital connection for iPod(R), iPhone(R) and iPad(R)
Rated Output Power (1kHz, 2ch driven) 110 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 95 W (8 ohms, 0.09% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 130/ 170 / 195 / 240 W
Surround Sound Processing
CINEMA DSP Yes (3D)
DSP Programs 17
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
SILENT CINEMA / Virtual CINEMA DSP Yes
Extra Bass yes
Dialog Level Adjustment Yes
Dialogue Lift Yes (no presence speakers required)
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Pro Logic IIx Yes
DTS-HD Master Audio Yes
Audio Features
Compressed Music Enhancer Yes
YPAO sound optimization Yes
YPAO multi-point measurement Yes (R.S.C.)
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown)
YPAO Volume Yes
Bi-amp capability Yes
Pure Direct Yes (with video on mode)
Video Features
4K Ultra HD Pass-through and upscaling Yes (60p / YCbCr 4:4:4)
HDMI 3D pass-through Yes
HDMI Audio Return Channel Yes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
4K Ultra HD Pass-through and upscaling Yes (latest HDMI version for 4K Ultra HD 50 / 60p) *Available via firmware upgrade in Fall
HDMI upscaling Yes (analog to HDMI / HDMI to HDMI)
Extensive Connection
HDMI Input/Output 6(1 front) / 2 (simultaneous)
HDMI CEC Yes (SCENE, device control)
USB Input iPod(R) / iPhone(R), USB memory, portable audio player
Front AV Input HDMI (MHL support) / USB / Composite
Network Port Yes
Digital Audio Input/Output: Optical 2/0
Digital Audio Input/Output: Coaxial 2/0
Analog Audio Input/Output 5 / 1
Component Video Input/Output 2/1
Composite Video Input/Output 5 (1 front) / 2
Headphone Output 1
Preout 7.2-ch
Connectivity
DC Out Yes
AirPlay Yes
Wi-Fi Yes (with Wireless Direct)
MHL Support Yes
Tuner Section
FM/AM Tuner Yes
User Interface
On-screen display Graphical user interface
SCENE SCENE (4 sets)
App Control Yes (iPhone / iPad, Android(TM) phone / tablet)
Remote Control Unit Yes
Web Broser Control Yes
Zone Control
Zone 2 Audio Output Line output
Powered Zone Zone2
+12V Trigger Output 1
Remote (IR) Input/Output 1/1
Party Mode Yes
General
Standby Power Consumption (IR only) =0.15 W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 17-1/8" x 6-3/4" x 14-3/8" (with antenna: 17-1/8" x 9-1/4" x 14-7/8")
Weight 23.2 lbs.
HDMI output with output resolution selection to the max your tv can handle: 1080p, 720p, 1080i, or 720i
USB stands for Universal Serial Bus. A USB port is a cable connection interface used on personal computers and consumer electronics. USB ports allow stand-alone electronic devices to be connected via cables to a computer or to each other.
Works with world wide electricity 100-240 volts volts 50/60 hz. Can be used with electricity in North America or any other place in the world. ALL of our Multisystem TV's operate on ALL Global voltages, including 110, 120 Volts and 220, 230, 240 Volts.
