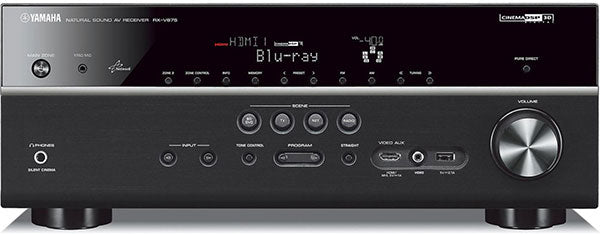

The RX-V775 has high purity pre-amplification,anti-vibration technology and independent pure power supplies.This AV receiver is compatible with many audio formats such as Dolby, True HD and DTS-HD Master Audio. And also compatible with FLAC/WAV 192 kHz playback, You will enjoy excellent sound quality from Blu-ray Disc
Rated Output Power (1kHz, 2ch driven) 110 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 95 W (8 ohms, 0.09% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 140/180/210/250 W
Surround Sound Processing
CINEMA DSP Yes (3D)
DSP Programs 17
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Dialogue Lift Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Pro Logic IIx Yes
DTS-HD Master Audio Yes
Audio Features
Pure Direct Yes (with video on mode)
Compressed Music Enhancer Yes
YPAO multi-point measurement Yes (R.S.C.)
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown)
Video Features
4K Ultra HD Pass-through and upscaling Yes
HDMI 3D pass-through Yes
HDMI Audio Return Channel Yes
HDMI upscaling Yes (analog to HDMI / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Connectivity
MHL Support Yes
AirPlay Yes
DC Out Yes

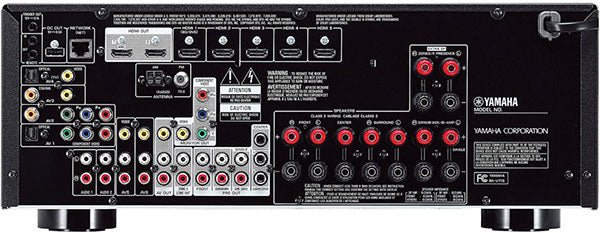

Extensive Connection
HDMI Input/Output 6 (front 1) / 2 (simultaneous)
HDMI CEC Yes (SCENE, device control)
USB Input iPod/iPhone/iPad, USB memory, portable audio player
Front AV Input HDMI (MHL support)/USB/Composite
Network Port With access to Pandora(R)/Rhapsody(R)/ Internet Radio/vTuner Internet radio service and DLNA 1.5 compatible
Digital Audio Input/Output: Optical Feb-00
Digital Audio Input/Output: Coaxial Feb-00
Analog Audio Input/Output 1-Apr
Component Video Input/Output 1-Feb
Composite Video Input/Output 5 (front 1) / 1
Preout 7.2 ch
Headphone Output 1
Tuner Section
FM/AM Tuner Yes
User Interface
On-screen display Graphical user interface
SCENE SCENE (4 sets)
App Control Yes (iPhone/iPad/Android(TM) phone/tablet)
Web Browser Control Yes
Remote Control Unit Yes (preset)
Zone Control
Zone 2 Audio Output Line output
Powered Zone Zone 2
+12V Trigger Output 1
Remote (IR) Input/Output 1-Jan
Party Mode Yes
General
Standby Power Consumption (IR only) <=0.1 W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 17-1/8" x 6-3/4" x 14-1/2"
Weight 23.2 lbs
HDMI output with output resolution selection to the max your tv can handle: 1080p, 720p, 1080i, or 720i
USB stands for Universal Serial Bus. A USB port is a cable connection interface used on personal computers and consumer electronics. USB ports allow stand-alone electronic devices to be connected via cables to a computer or to each other.
Works with world wide electricity 100-240 volts volts 50/60 hz. Can be used with electricity in North America or any other place in the world. ALL of our Multisystem TV's operate on ALL Global voltages, including 110, 120 Volts and 220, 230, 240 Volts.
