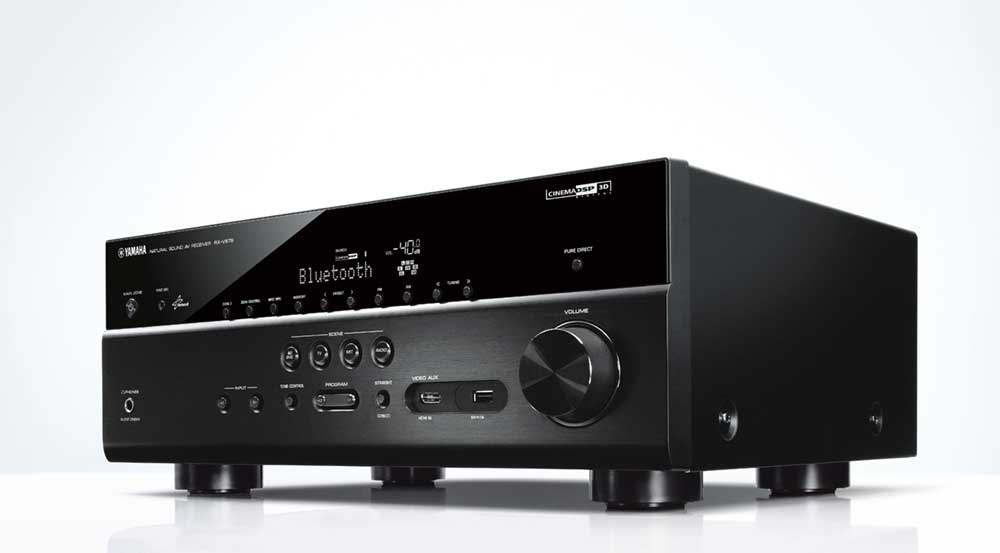

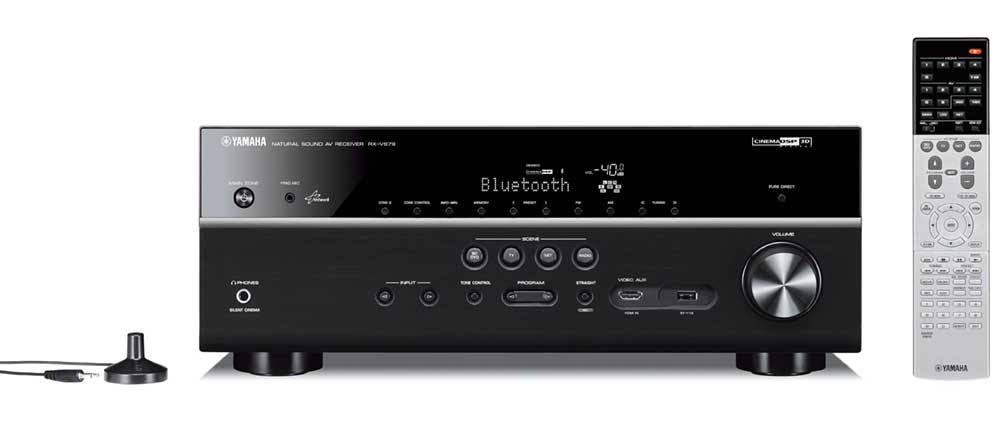

Yamaha RX-V679 110-240 Volts Receiver 110 - 220 - 240 Volts Amplifier

Yamaha RX-V679 110-240 Volts Receiver 110 - 220 - 240 Volts Amplifier

Amplifier Section

• Channel 7.2
• Rated Output Power (1kHz, 2ch driven) 105 W (8 ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven) 90 W (8 ohms, 0.06% THD)
• Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) 150 W (8 ohms, 10% THD)
• Dynamic Power per Channel (8/6/4/2 ohms) 125 / 165 / 190 / 235 W

Surround Sound Processing

• CINEMA DSP Yes (3D)
• DSP Programs 17
• Dialog Level Adjustment Yes
• Virtual Presence Speaker Yes
• Virtual Surround Back Speaker Yes
• Dialogue Lift Yes (no presence speakers required)
• SILENT CINEMA / Virtual CINEMA DSP Yes (Virtual CINEMA FRONT)
• Dolby TrueHD Yes
• Dolby Digital Plus Yes
• Dolby Pro Logic IIx Yes
• DTS-HD Master Audio Yes

Audio Features

• Pure Direct Yes (with video on mode)
• Compressed Music Enhancer Yes (including for Bluetooth(R))
• YPAO multi-point measurement Yes (R.S.C.)
• YPAO Volume Yes
• Adaptive DRC (Dynamic Range Control) Yes
• Initial Volume & Maximum Volume Setting Yes
• Bi-amp capability Yes
• Audio Delay Yes (0-500 ms)
• 192kHz/24-bit DACs for all channels Yes (Burr-Brown)

Video Features

• 4K Ultra HD Pass-through and upscaling Yes (4K 60p 4:4:4)
• 4K Ultra HD pass-through Yes
• HDMI 3D pass-through Yes
• HDMI Audio Return Channel Yes
• HDMI upscaling Yes (analog to HDMI, HDMI to HDMI)
• Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes

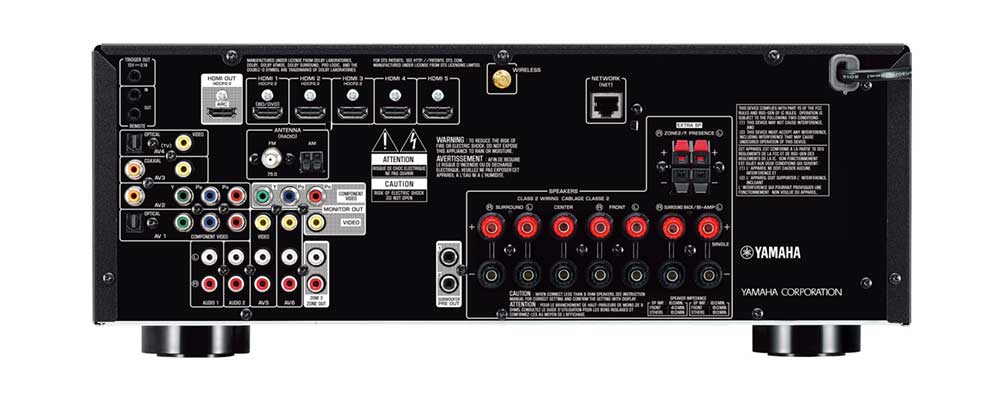

Extensive Connection

• HDMI Input/Output 6 in / 2 out (HDCP 2.2: 3 in / 2 out)
• HDMI CEC Yes (SCENE, device control)

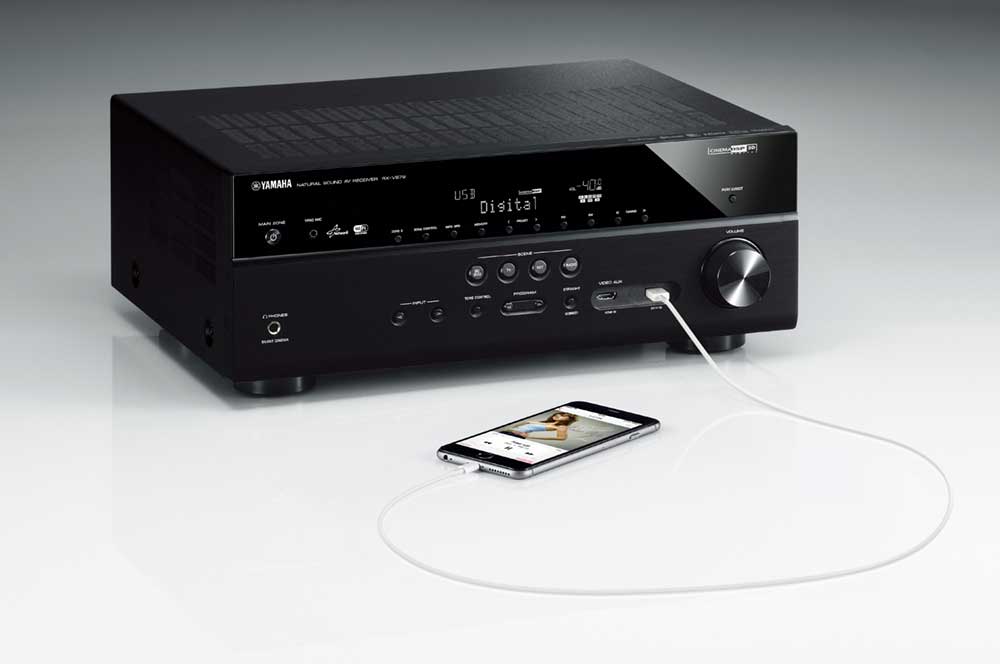

• USB Input iPod(R) / iPhone(R), USB memory, portable audio player
• Network Port Yes
• Front AV Input HDMI / USB
• Digital Audio Input/Output: Optical 2 / 0
• Digital Audio Input/Output: Coaxial 2 / 0
• Analog Audio Input/Output 4 / 0
• Component Video Input/Output 2 / 1
• Composite Video Input/Output 4 / 1
• Preout 7.2-ch
• Headphone Output Yes

Connectivity

• MusicCast Yes
• Wi-Fi Yes (with Wireless Direct)
• AirPlay Yes

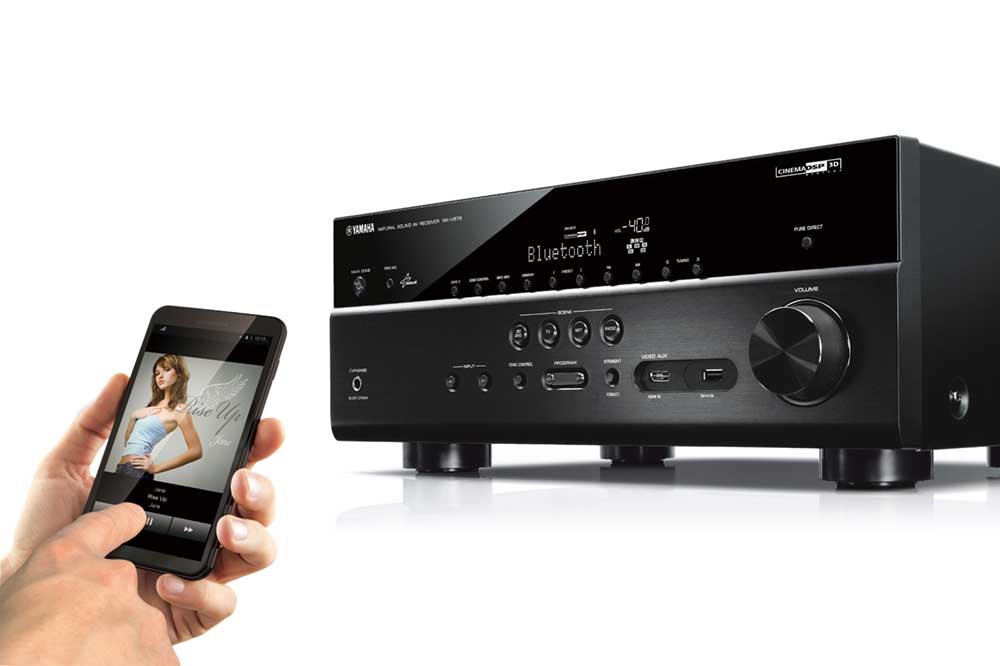

• Bluetooth Yes (AAC)

Tuner Section

• FM/AM Tuner: Yes

User Interface

• On-screen display Graphical user interface
• SCENE SCENE (4 sets)

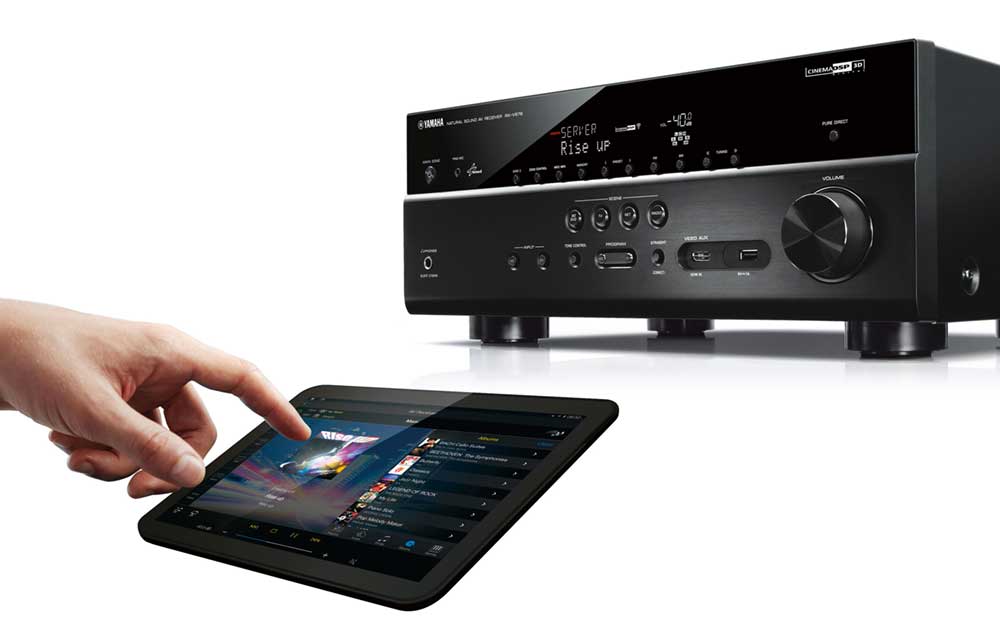

• App Control Yes (iPhone(R) / iPad(R) / Android(TM) phone / tablet)
• Web Browser Control Yes
• Remote Control Unit Yes

Zone Control

• Zone 2 Audio Output Line output
• Powered Zone Zone 2
• +12V Trigger Output 1
• Remote (IR) Input/Output 1 / 1
• Party Mode Yes

General

• Standby Power Consumption (IR only) <=0.1 W
• Auto Power Standby Yes
• ECO mode Yes
• Dimensions (W x H x D) 17-1/8" x 6-3/4" x 14-7/8" (17-1/8" x 9-1/4" x 14-7/8" with antenna up)
• Weight 22.1 lbs.
