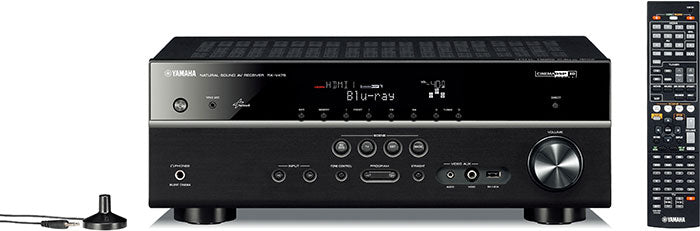

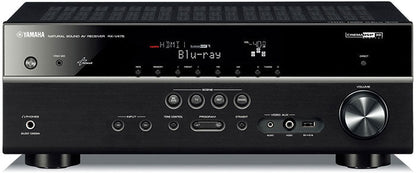

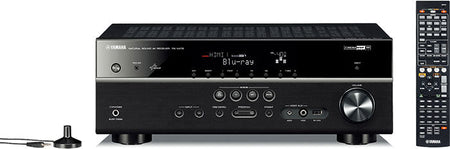

This RX-V575 is a full scale AV entertainment.This offers direct mode for the highest quality sound. Enjoy the 4K ultra pass through, and experience the powerful surround sound as you stream your favorite music
All of this was designed with a very strong focus with achieving great sound.
7-channel powerful surround sound
115 W per channel (8 ohms, 1 kHz, 0.9% THD, 1 ch driven)
80 W per channel (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2 ch driven)
HD Audio format decoding: Dolby(R) TrueHD and DTS-HD Master Audio(TM)
Dolby Digital Plus and DTS-HD High Resolution Audio(TM)
Assignable amplifiers for front speaker bi-amp, surround back or Zone B connection
FLAC or WAV 192 kHz / 24-bit audio playback
Amplifier Section
Channel 7.2
Rated Output Power (1kHz, 1ch driven) 115 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 80 W (8 ohms, 0.09% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 120/140/170/190 W
Surround Sound Processing
CINEMA DSP Yes (3D)
DSP Programs 17
Audio Features
Compressed Music Enhancer Yes
Surround Sound Processing
Virtual Presence Speaker Yes
SILENT CINEMA / Virtual CINEMA DSP Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Pro Logic IIx Yes
DTS-HD Master Audio Yes
Audio Features
YPAO sound optimization Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
Bi-amp capability Yes
Audio Delay Yes (0-250 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown)
Video Features
4K Ultra HD pass-through Yes
HDMI 3D pass-through Yes
HDMI Audio Return Channel Yes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
Connectivity
MHL Support Yes
AirPlay Yes
DC Out Yes
Extensive Connection
HDMI Input/Output 1-May
HDMI CEC Yes (SCENE, device control)
USB Input iPod(R)/iPhone(R)/iPad(R), USB memory, portable audio player
Network Port With access to vTuner Internet radio service, Pandora(R) and DLNA(R) 1.5 compatible.
Front AV Input USB/Mini-jack/Composite
Digital Audio Input/Output: Optical Feb-00
Digital Audio Input/Output: Coaxial Feb-00
Analog Audio Input/Output 4 (front 1) / 1
Component Video Input/Output 1-Feb
Composite Video Input/Output 5 (front 1) / 1
Preout Subwoofer (2 x mono)
Headphone Output 1
Tuner Section
FM/AM Tuner Yes
User Interface
On-screen display Yes (Color OSD)
SCENE SCENE (4 sets)
App Control Yes (iPhone(R)/iPad(R)/Android(TM) phone/tablet)
Remote Control Unit Yes (Preset)
Zone Control
Zone B Output Yes (Speaker B)
General
Standby Power Consumption (IR only) <=0.1 W
Auto Power Standby Yes
ECO mode Yes
Dimensions (W x H x D) 17-1/8" x 6-3/8" x 12-3/8"
Weight 18.1lbs.
HDMI output with output resolution selection to the max your tv can handle: 1080p, 720p, 1080i, or 720i
USB stands for Universal Serial Bus. A USB port is a cable connection interface used on personal computers and consumer electronics. USB ports allow stand-alone electronic devices to be connected via cables to a computer or to each other.
Works with world wide electricity 100-240 volts volts 50/60 hz. Can be used with electricity in North America or any other place in the world. ALL of our Multisystem TV's operate on ALL Global voltages, including 110, 120 Volts and 220, 230, 240 Volts.
