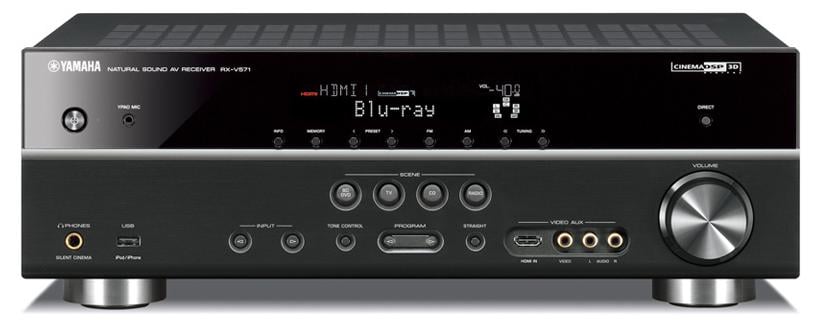

This Yamaha Home Theater receiver is 110 volts, 120 volts, 220 volts, 230 volts, and 240 volts compatible for world wide use. It will work anywhere in the world with Pal, NTSC or Secam video signals.
Front panel USB Digital Connection for iPod and iPhone
Multi-language on-screen display GUI including album art
1080p-compatible HDMI: 6 inputs (1 on front) and 1 output
HDMI front panel input for devices such as camcorders and digital cameras
Analogue and HDMI video upscaling to full HD 1080p
HDMI with 3D and Audio Return Channel
HDMI CEC with versatile control from AV Receiver remote control
HD Audio decoding with CINEMA DSP 3D (17 DSP programmes)
Auto power down function with variable time setting
USB iPod Connection
Yamaha"s RX-V571 AV Receiver offers simple plug and play operation for an iPhone or iPod. Attach the white cable supplied with the iPod/iPhone to the USB input on the front of the receiver and navigate the music via the on-screen GUI using the receiver"s remote control. The iPod/iPhone will also conveniently charge while connected to the receiver.
3D CINEMA DSP with Virtual Presence Speakers
The RX-V571 uses Yamaha"s 3D CINEMA DSP to provide a more open sound field. Using Virtual Presence Speaker technology, the RX-V471 allows HD Audio format decoding (like Dolby True HD and DTS Master Audio) delivering 3D sound without actual use of extra presence speakers.
1080p Video Upscaling
The RX-V571 is capable of 1080p video upscaling from both analogue and HDMI sources, producing outstanding video quality. By upscaling low resolution picture from sources such as DVD, every pixel available on a full HD 1080p TV is used providing an image closer to Blu-ray material.
HD Audio Decoding
With built-in decoders for the latest HD Audio Formats including Dolby True-HD and DTS Master Audio, Yamaha"s RX-V571 has the ability to deliver HD Audio to your speakers, identical to the movie studios master recording.
Bi-Amp Capable
By redirecting the surround back amplifiers to the main speakers, the RX-V571 essentially provides more power to larger front speakers, allowing larger main speakers to be used with this receiver.
AV Receiver
Amplifier Section
Channel
7.1
Rated Output Power (1kHz, 1ch driven)
105W (6 ohms, 0.9% THD)
Dynamic Power per Channel (8/6/4/2 ohms)
-/110/130/150W
Surround Sound Processing
CINEMA DSP
Yes (3D)
DSP Programs
17
Compressed Music Enhancer
Yes
Virtual Presence Speaker
Yes
SILENT CINEMA / Virtual CINEMA DSP
Yes
Dolby TrueHD
Yes
Dolby Digital Plus
Yes
Dolby Pro Logic IIx
Yes
DTS-HD Master Audio
Yes
Audio Features
YPAO sound optimization
Yes
Adaptive DRC (Dynamic Range Control)
Yes
Initial Volume & Maximum Volume Setting
Yes
Bi-amp capability
Yes
Audio Delay
Yes (0-250 ms)
192kHz/24-bit DACs for all channels
Yes (Burr-Brown)
Video Features
HDMI 3D passthrough
Yes
HDMI Audio Return Channel
Yes
HDMI upscaling
Yes (Analog to HDMI / HDMI to HDMI)
Deep Colour/x.v.Colour/24Hz Refresh Rate /Auto Lip-Sync
