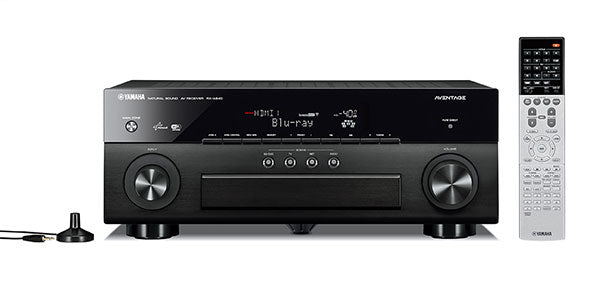

Yamaha RX-A840 110-240 Volts Receiver 110 - 220 - 240 Volts Amplifier

Yamaha RX-A840 110-240 Volts Receiver 110 - 220 - 240 Volts Amplifier

Amplifier Section

• Channel: 7.2
• Rated Output Power (1kHz, 2ch driven): 110 W (8 ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven): 100 W (8 ohms, 0.09% THD)
• Dynamic Power per Channel (8/6/4/2 ohms): 130 / 170 / 195 / 240 W

Surround Sound Processing

• CINEMA DSP: Yes (3D)
• DSP Programs: 17
• Dialog Level Adjustment: Yes
• Virtual Presence Speaker: Yes
• Dialogue Lift: Yes (no presence speakers required)
• SILENT CINEMA: Yes
• Virtual CINEMA FRONT: Yes
• Dolby TrueHD: Yes
• Dolby Digital Plus: Yes
• Dolby Pro Logic IIx: Yes
• DTS-HD Master Audio: Yes

Audio Features

• Pure Direct: Yes (with video on mode)
• Compressed Music Enhancer: Yes
• YPAO sound optimization: Yes (multipoint)
• YPAO Volume: Yes
• Adaptive DRC (Dynamic Range Control): Yes
• Initial Volume & Maximum Volume Setting: Yes
• A.R.T. Wedge: Yes
• Bi-amp capability: Yes
• Audio Delay: Yes (0-500 ms)
• 192kHz/24-bit DACs for all channels: Yes (Burr-Brown)

Video Features

• HDMI 2.0 Spec Support: Yes
• 4K Ultra HD Pass-through and upscaling: Yes (60p / YCbCr 4:4:4)
• HDMI 3D pass-through: Yes
• HDMI Audio Return Channel: Yes
• HDMI upscaling: Yes (analog to HDMI / HDMI to HDMI)
• Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes

Connectivity

• MHL Support:: Yes
• Wi-Fi: Yes (with Wireless Direct)
• DC Out: Yes (USB DC output 5 V / 0.5 amp)
• AirPlay: Yes

Extensive Connection

• HDMI Input/Output: 8 (1 front) / 2 (simultaneous)
• HDMI CEC: Yes (SCENE, device control)
• Network Port: Yes (AirPlay(R), HTC Connect(TM), Pandora(R), Spotify, Rhapsody(R), SiriusXM Internet Radio, DLNA(R) 1.5, vTuner)
• USB Input: iPod(R) / iPhone(R) / iPad(R), USB memory, portable audio player (MP3, WMA, AAC up to 48 kHz / 16-bit, FLAC / WAV up to 192 kHz / 24-bit)
• Front AV Input: HDMI (MHL support), USB, analog audio, composite
• Digital Audio Input/Output: Optical: 2 / 0
• Digital Audio Input/Output: Coaxial: 2 / 0
• Analog Audio Input/Output: 5 / 1
• Component Video Input/Output: 2 / 1
• Composite Video Input/Output:: 5 (1 front) / 2
• Preout:: 7.2-ch
• Headphone Output: Yes

Tuner Section

• FM/AM Tuner: Yes

User Interface

• On-screen display: Graphical user interface
• SCENE: SCENE (four sets)
• App Control: Yes (iPhone / iPad, Android(TM) phone / tablet, Kindle Fire(TM))
• Web Browser Control: Yes
• Remote Control Unit: Yes

Zone Control

• Zone 2 Audio Output: Line output
• Powered Zone: Zone 2
• Zone B Video Output: Yes
• RS-232C Interface: Yes
• +12V Trigger Output: Yes (1)
• Remote (IR) Input/Output: 1 / 1
• Party Mode: Yes

General

• Standby Power Consumption (IR only): <=0.1 W
• Auto Power Standby: Yes
• ECO mode: Yes
• Dimensions (W x H x D): 17-1/8" x 6-3/4" x 14-1/2" (with antenna: 17-1/8" x 9-1/4" x 15")
• Weight: 23.4 lbs.
