Yamaha

Yamaha RX-A820 110-240 Volts Receiver 110 - 220 240 volts

Special Discount! Save5%!
Use Promo Code 5OFFBFS At Checkout!

5OFFBFS | Copy
Sale price $835.00 USD Regular price $910.00 USD
Sold out
Shipping calculated at checkout.
SKU: YAM-RXA820
  • Designed to deliver the highest levels of audio performance
  • Powerful 7-channel surround sound, 100W per channel (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2ch driven)
  • Anti-Resonance Technology (A.R.T.) Wedge helps to ensure that vibrations do not affect sound quality
  • Network functions such as AirPlay and AV Controller App
  • 4K pass-through and upscaling for next-generation high resolution images
  • High quality video processing with precise deinterlacing
  • HDMI (eight inputs - with one on front - and two out) with 3D and Audio Return Channel
  • YPAO R.S.C. (Reflected Sound Control) sound optimization with multi-point measurement
  • Versatile Zone control such as Zone 2 on/off and Party Mode
  • HDMI Zone B for audio/video streaming to another room
  • Advanced multi-language GUI on-screen display with album art

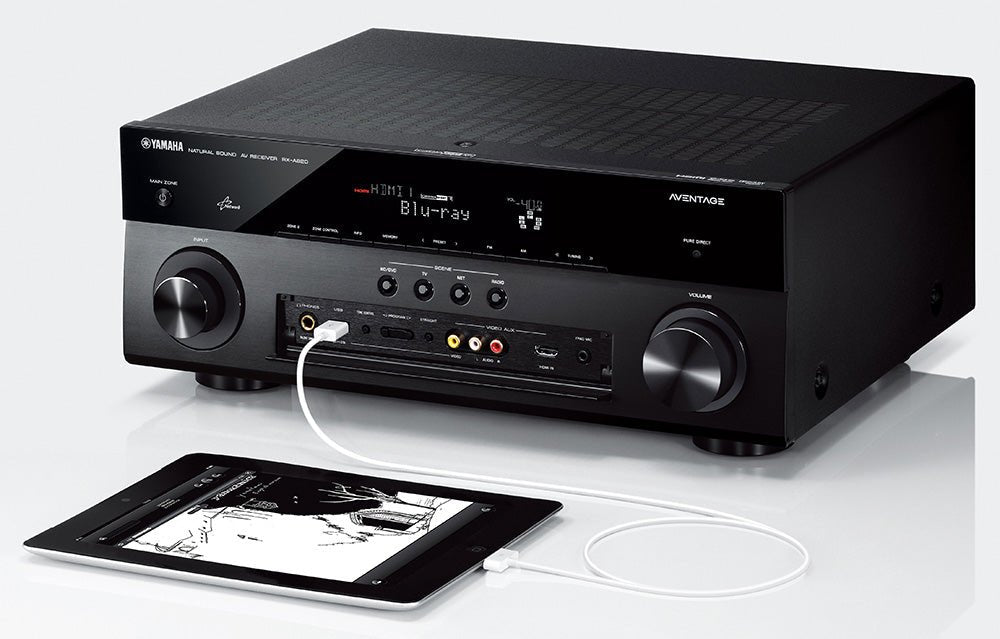

  • Front panel USB Digital Connection for iPod, iPhone and iPad
  • ECO mode operation for about 20% less power consumption
  • Dialogue Lift and Dialogue Level Adjustment for natural dialogue and vocals
  • Newly designed preset remote
  • Aluminum front panel offers visual and aural benefits
  • Back of receiver has a switch for 110/120 volts and 220/240 volts. Please select the voltage before using

Out of stock

Yamaha RX-A820 110-240 Volts Receiver 110 - 220 240 volts
$835.00 USD

Yamaha RX-A820 110-240 Volts Receiver 110 - 220 240 volts Description:

General Features:

  • Designed to Deliver the Highest Levels of Audio Performance
  • Anti-Resonance Technology Wedge Helps to Ensure that Vibrations Do Not Affect Sound Quality
  • 4K Pass-through and Upscaling Supports Latest High Resolution Video Formats
  • High Quality Video Processing with Edge Adaptive Deinterlacing
  • HDMI with 3D and Audio Return Channel
  • Network Functions
  • AV Controller App for Easy, Convenient Operation
  • AirPlay Allows Streaming Music to AV Receiver
  • USB Digital Connection for iPod, iPhone and iPad on the Front Panel
  • Versatile Zone Control
  • Input Selection in HDMI Standby Through Mode
  • HDMI CEC for Easy Operation
  • HDMI Front Panel Input
  • Advanced Multi-language GUI On-screen Display
  • SCENE for One-touch Start
  • YPAO R.S.C. (Reflected Sound Control) Sound Optimization with Multi-point Measurement
  • Subwoofer Trim for Improved Sound Imaging
  • Compressed Music Enhancer
  • Dialogue Lift and Dialogue Level Adjustment for Natural Dialogue and Vocals
  • HD Audio with CINEMA DSP 3D and Virtual Presence Speaker
  • Adaptive DRC (Dynamic Range Control)
  • ECO mode lowers power consumption by 20%*
  • Selectable Auto Power Down
  • Low Standby Power Consumption
  • Intelligent Amp Assign
  • Aluminum Front Panel Offers Visual and Aural Benefits

Other Notable Audio Features

  • Powerful 7-channel surround sound
  • 100W per channel (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2ch driven)
  • 110W per channel (8 ohms, 1 kHz, 0.9% THD, 2ch driven)
  • HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio
  • Discrete amp configuration
  • Selected high quality parts to achieve optimum audio performance
  • Pure Direct for HD Audio and video enjoyment
  • Burr-Brown 192 kHz/24-bit DACs for all channels
  • Low jitter PLL circuitry helps optimize sound imaging
  • Detachable power cable for easier installation (also allows cable upgrade)
  • Assignable amplifiers for bi-amp connection
  • Intelligent assignable amplifiers for surround back - Front Presence or Zone 2
  • Banana-plug compatible binding post speaker terminal for Zone 2/Presence channels

Other Notable Video Features

  • 4K/full HD 1080p video upscaling from analog and HDMI input
  • Supports Deep Color (30/36 bit), x.v.Color, 24 Hz refresh rate and auto lip-sync compensation

Other Notable Advanced Features

  • Pandora
  • Rhapsody(R)
  • SiriusXM Internet Radio
  • Charging of iPod, iPhone and iPad via USB when AV receiver is off
  • iPod/iPhone song titles displayed in English and Western European languages on the front panel and on-screen display
  • Audio input assign capability for HDMI and component video input
  • Audio delay for adjusting lip-sync (0-500 ms)

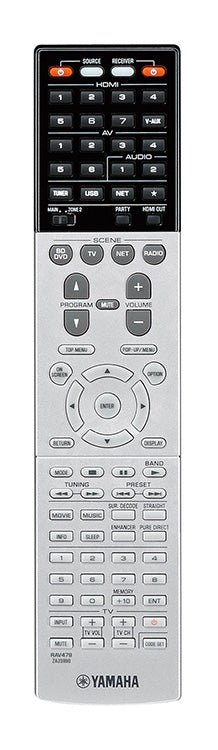

  • Newly designed preset remote unit
  • Background video feature (for tuner and net)

Other Notable Surround Realism

  • Virtual dialogue lift even without use of Presence speakers
  • Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence speakers
  • SILENT CINEMA and Virtual CINEMA DSP

Yamaha RX-A820 110-240 Volts Receiver 110 - 220 240 volts Specifications:

Amplifier Section Channel 7.2
Rated Output Power (1kHz, 2ch driven) 110W (8ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 100W (8ohms, 0.09% THD)
Dynamic Power per Channel (8/6/4/2 ohms) 140/180/210/250W
Surround Sound Processing CINEMA DSP Yes (3D)
DSP Programs 17
Compressed Music Enhancer Yes
Virtual Presence Speaker Yes
Dialogue Lift Yes (no Presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Pro Logic IIx Yes
DTS-HD Master Audio Yes
Dialog Level Adjustment Yes
Audio Features Pure Direct Yes (with video on mode)
YPAO multi-point measurement Yes with R.S.C. (Reflected Sound Control)
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
192kHz/24-bit DACs for all channels Yes (Burr-Brown)
Video Features HDMI 3D passthrough Yes
HDMI Audio Return Channel Yes
Component upconversion Yes (480i)
HDMI upscaling Yes (analog to HDMI / HDMI to HDMI)
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync Yes
4K Pass-through & 4K Upscaling Yes

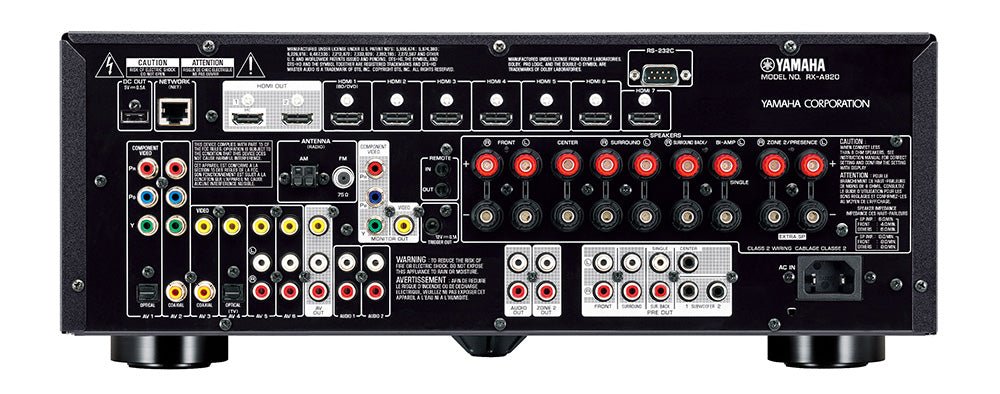

Extensive Connection HDMI Input/Output 8 (1 front) / 2 (simultaneous)
HDMI CEC Yes (SCENE, device control)
USB Input iPod/iPhone/iPad, USB memory, portable audio player
Network Port Access to vTuner Internet Radio service and DLNA 1.5 compatible

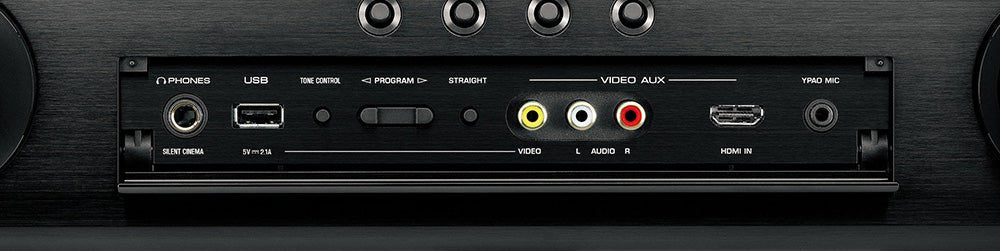

Front AV Input HDMI, USB, analog audio, optical, composite
Digital Audio Input/Output: Optical 2 / 0
Digital Audio Input/Output: Coaxial 2 / 0
Analog Audio Input/Output 5 / 1
Component Video Input/Output 2 / 1
Composite Video Input/Output 5 (1 front) / 1
Preout 7.2ch
Headphone Output 1
Connectivity AirPlay Yes
Tuner Section FM/AM Tuner Yes
User Interface On-screen display Graphical user interface
SCENE SCENE (4 sets)
App Control Yes (iPhone/iPad, Android phone/tablet, Kindle Fire)
Web Browser Control Yes
Remote Control Unit Yes (Preset)
Zone Control Zone 2 Audio Output Line output
Powered Zone Zone 2
RS-232C Interface Yes
+12V Trigger Output 1
Remote (IR) Input/Output 1 / 1
Zone B Output Yes (HDMI)
General Standby Power Consumption (IR only) <=0.1W
Auto Power Standby Yes
Dimensions (W x H x D) 17-1/8” x 6-3/4” x 14-1/2”
Weight 23.8 lbs.
ECO mode Yes
Shipping Dimensions (W x H x D) 17-3/4" x 10-1/2" x 20-7/8"
Shipping Weight (lbs.) 29.76 lbs.
