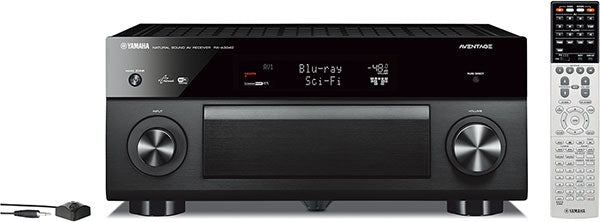

Yamaha RX-A3040 110-240 Volts Receiver 110 - 220 - 240 Volts Amplifier

Yamaha RX-A3040 110-240 Volts Receiver 110 - 220 - 240 Volts Amplifier

Amplifier Section

• Channel : 9.2
• Rated Output Power (1kHz, 2ch driven): 165 W (8 ohms, 0.9% THD)
• Rated Output Power (20Hz-20kHz, 2ch driven): 150 W (8 ohms, 0.06% THD)
• Dynamic Power per Channel (8/6/4/2 ohms): 175 / 220 / 295 / 410 W

Surround Sound Processing

• CINEMA DSP: Yes (HD3)
• DSP Programs: 23
• Dialog Level Adjustment: Yes
• Virtual Presence Speaker: Yes
• Dialogue Lift: Yes (no presence speakers required)
• SILENT CINEMA: Yes
• Virtual CINEMA FRONT: Yes
• Dolby Atmos: Yes (5.1.4-ch or 7.1.4-ch with external amp)
• Dolby TrueHD: Yes
• Dolby Digital Plus: Yes
• Dolby Pro Logic IIx: Yes
• DTS-HD Master Audio: Yes

Audio Features

• Pure Direct: Yes (with video on mode)
• Compressed Music Enhancer: Yes
• High-resolution Music Enhancer: Yes
• YPAO sound optimization: Yes (3D and angle)
• YPAO Volume: Yes
• Adaptive DRC (Dynamic Range Control): Yes
• Initial Volume & Maximum Volume Setting: Yes
• A.R.T. Wedge: Yes
• Bi-amp capability: Yes
• Audio Delay: Yes (0-500 ms)
• 192kHz/24-bit DACs for all channels: Yes (ESS Technology ES9016 SABRE32(TM) Ultra DAC + ESS Technology ES9006 SABRE(TM) Premier Audio DAC)

Video Features

• 4K Ultra HD Pass-through and upscaling: Yes (60p / YCbCr 4:4:4)
• HDMI 3D pass-through: Yes
• HDMI Audio Return Channel: Yes
• HDMI upscaling: Yes (analog to HDMI / HDMI to HDMI)
• HDMI 2.0 Spec Support; Yes
• Video adjustment : Yes
• Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes

Connectivity

• MHL Support:: Yes
• Wi-Fi: Yes (with Wireless Direct)
• DC Out: Yes
• AirPlay: Yes

Extensive Connection

• HDMI Input/Output: 8 (1 front) / 2 (assignable for zone 2 / 4)
• HDMI CEC: Yes (SCENE, device control)
• Network Port: Yes (AirPlay(R), HTC Connect(TM), Pandora(R), Spotify, Rhapsody(R), SiriusXM Internet Radio, DLNA(R) 1.5, vTuner)
• USB Input: iPod(R) / iPhone(R) / iPad(R), USB memory, portable audio player (MP3, WMA, AAC up to 48 kHz / 16-bit, FLAC / WAV up to 192 kHz / 24-bit)
• Front AV Input: HDMI (MHL support), USB, analog audio, optical, composite
• Digital Audio Input/Output: Optical: 3 / 0
• Digital Audio Input/Output: Coaxial: 3 / 0
• Analog Audio Input/Output: 10 (1 front) / 1
• Phono Input: Yes
• Component Video Input/Output: 3 / 1
• Composite Video Input/Output: 5 (1 front) / 2
• Multi-Channel Input:: 8-ch
• Preout: 11.2-ch
• Headphone Output: Yes

Tuner Section

• FM/AM Tuner: Yes
• HD Radio Compatibility: Yes

User Interface

• On-screen display: Graphical user interface
• SCENE: SCENE PLUS (12 sets)
• App Control: Yes (iPhone / iPad, Android(TM) phone / tablet, Kindle Fire(TM))
• Web Browser Control: Yes
• Remote Control Unit: Yes (preset)

Zone Control

• Zone 2 Audio Output: Line output / HDMI
• Zone 3 Audio Output: Line output
• Zone 4 Audio Output: HDMI
• Powered Zone: Zone 2 / 3
• Zone Video Output: HDMI / Component / Composite
• Zone HDMI: Yes (advanced HDMI(R) zone switching)
• Zone B Video Output: HDMI
• Zone GUI: YES
• RS-232C Interface: Yes
• +12V Trigger Output: Yes (2)
• Remote (IR) Input/Output: 2 / 2
• Party Mode: Yes

General

• Standby Power Consumption (IR only): <=0.1 W
• Auto Power Standby: Yes
• ECO mode: Yes
• Dimensions (W x H x D): 17-1/8" x 7-1/2" x 18-3/8" (with antenna: 17-1/8" x 9-7/8" x 18-5/8")
• Weight: 39.9 lbs.
