Description
Overview
This series is a double conversion Power Converter which produces stable pure sine wave voltage and frequency output (O/P). With this Converter, you can protect your equipment from most power issues, including power sags, power surges, brownouts, and line noise. With the common neutral topology, the converter provides internal connection from AC I/P neutral to AC O/P neutral; thus, it does not need to use an isolation transformer to provide 0 volt from AC I/P neutral to O/P neutral. This feature will reduce the interference to loads of communication or video systems.
Features
- Outstanding Performance & Reliability
- Common Neutral, Double Conversion Topology (0/P Neutral to 1/P Neutral is O volts normally)
- Wide Range Input Window and Input Power Factor Correction
- Low Noise, Smart Cooling Fan Design
- High Efficiency, New Full-bridge Inverter Design
- Automatic Restart After Overload Shutdown
- AC Input Generator Compatible
- Remote Emergency Power Off

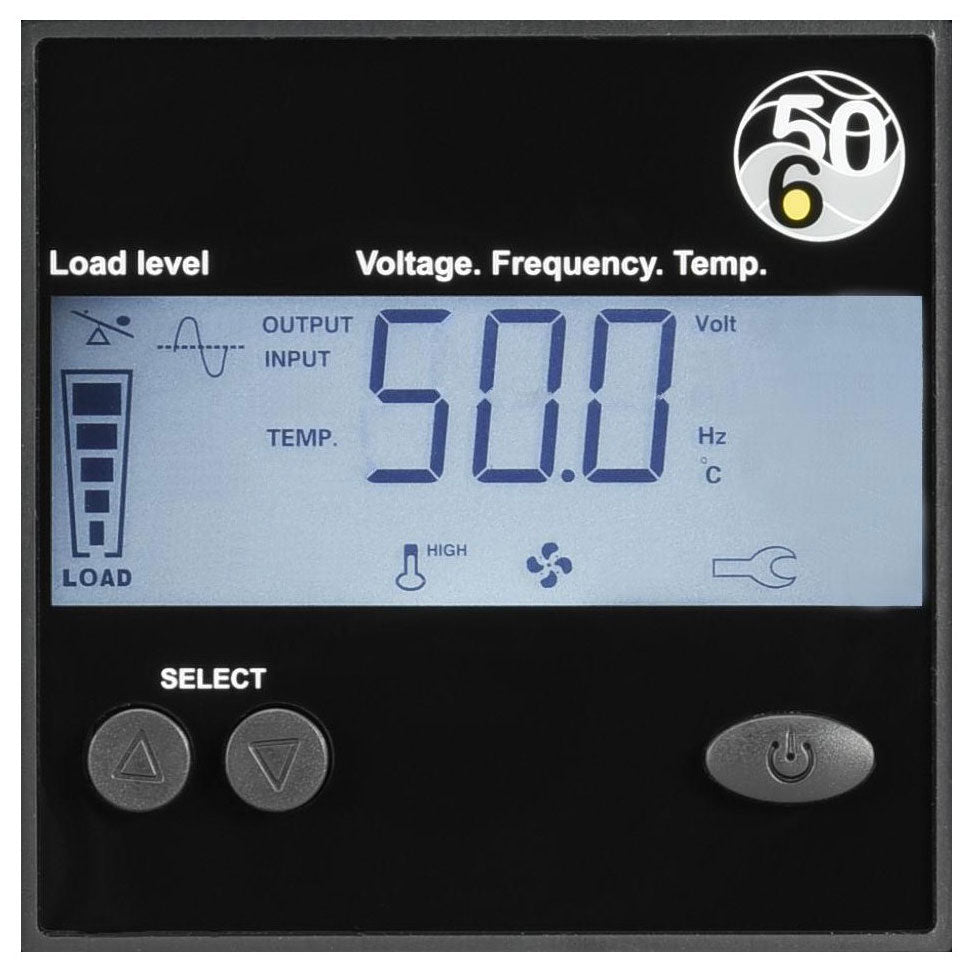

- Multifunction LCD Screen
STEP-UP Voltage and Frequency Converter (UX / Tower Series)
|
Output |
|
| Output Capacity | 1000VA/900W |
| Output Voltage | 200V/220V/230V/240V Selectable |
| Voltage Waveform | Sine wave |
| Crest Factor | 3:1 |
| Output Frequency (sync to mains) |
50/60Hz (selectable from LCD function button) |
| Output Frequency (not sync to mains) |
50±0.01Hz or 60±0.01Hz |
| Regulation | ±2% of selected output voltage (adjustable by using the setting software) |
| Output Current 200 V ~ 240 V |
4.2 Amp |
| Output Peak Current (<250mS) |
13 Amp |
| Overload protection | 100%~129% for 60 seconds, then audible alarm; audible alarm sounds for 60 seconds before shutting down >130%, alarm will go off for 2 seconds and then shutting down |
| Harmonic Distortion | <3% (at full resistive load) |
| Efficiency | Up to 90% |
Input |
|
| Voltage Range | 100V~285Vac |
| Frequency Range | 45~70Hz |
| Input current | 10 Amp |
| Wall-Outlet Type Required |
 NEMA 5-15 R (15 Amps) |
| Power Factor | >=0.98 |
| Surge Current | <100A, 3mS |
Communications & Management |
|
| Control panel | LCD |
| Audible alarm | Overload alarm: Short-circuit alarm, Thermal alarm |
Environmental and Safety |
|
| Operating Temp. | Up to 1500 meters: 0℃ to 40℃ (32℉ to 104℉) |
| Transit/storage Temp. | -15℃ to 55℃ (5℉ to 131℉) |
| Relative Humidity | 5 - 95% non condensing |
| Operating Altitude | 0 ~ 3000 meters |
| Audible noise | =<45 dBA (at 1 meter from surface of unit) |
| Safety Markings | BSMI |
| Quality control system | ISO9001 |
Physical |
|
| Models | UX-1K |
| Dimensions D x H x W |
38×20×18cm 15×8×7in |
| Weight | 6.5 kg / 14.0 lbs |
| Shipping Dimensions D x H x W; Weight |
4.0×33.0×30.0cm; 8.5 kg 1.0×13.0×12.0in; 19.0 lbs |
Power X-Changer 22050UX-1K ...
