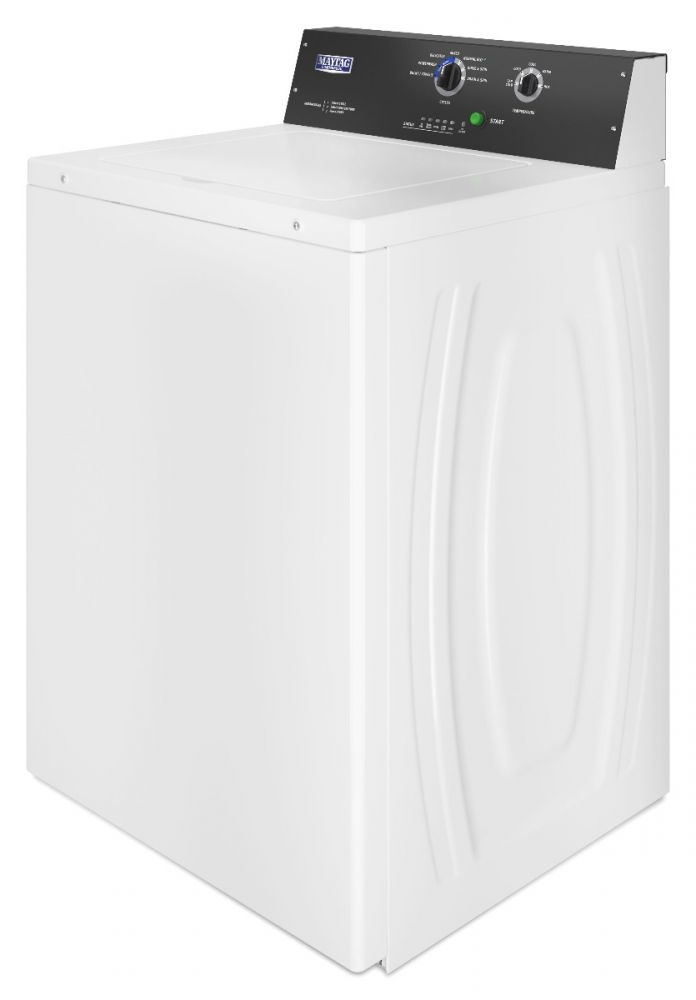

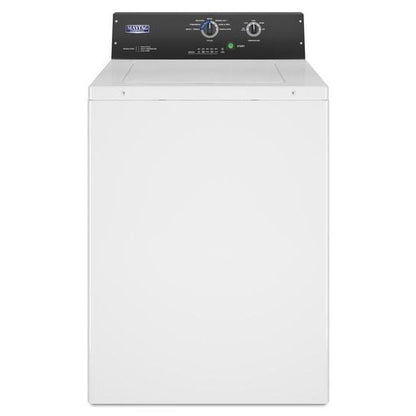

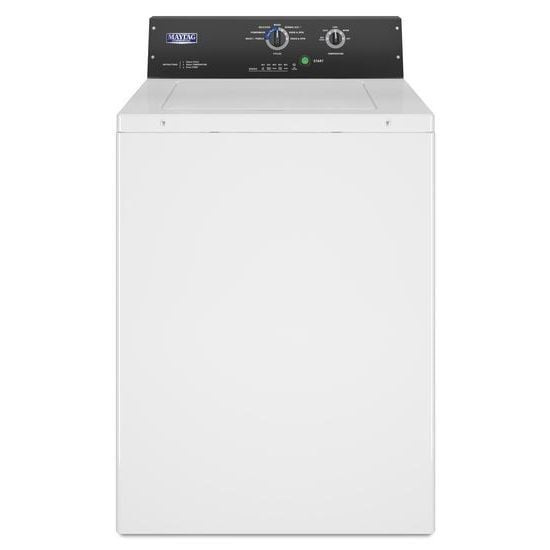

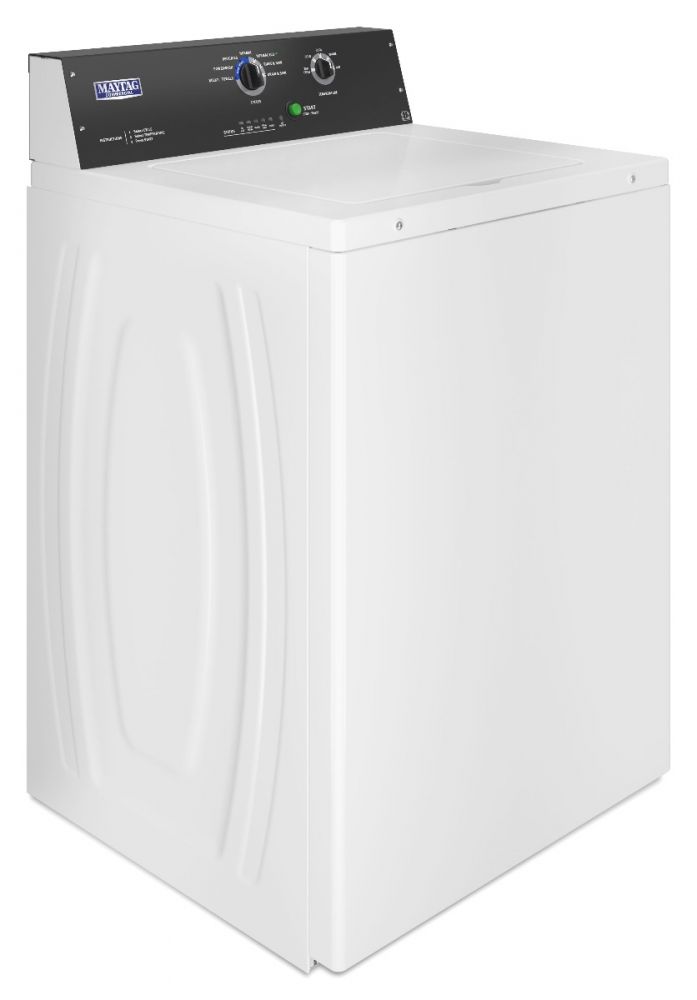

MAYTAG MAT23MNAKW 220 volt TOP LOAD WASHER 220v 240VOLTs 50HZ

Features

• Deep-Water Wash
• A traditional top-load wash experience with deep-water wash and rinse cycle options for vigorous cleaning action
• Spin Fill ensures each load is soaked before the wash cycle begins
• Large lid opening provides users unhindered access while loading and unloading
• Traditional Flex-Vane Agitator
• Powered by a ½ hp PSC motor and fin design to provide exceptional rollover performance
• Features four distinct wash patterns — from aggressive to gentle
• Feature a simple user interface with robust, easy-to-use knobs
• Built to Last
• Watertight, flexible, triple-lip seal — helps keep moisture safely away from the shaft and protects the bearings
• Front-panel accessibility — provides fast entry to the motor, transmission, and wash tub for streamlined self-service
• Porcelain enamel top and lid — a durable finish that stands up to the demands of high traffic
• Full wrap console — designed to help protect the internal components

Technical Specification

• Voltage and Frequency: 220-240 Volt, 50 Hz
• Payment Configuration: Non-Vend
• Amps: 10 A
• UL Listed: Yes
• CSA Certified: Yes

Capacity

• Cylinder Volume: 3.27 cu. ft. (92.6 liters)
• IEC Capacity: 23.2 lb. (10.5 kg)

Water Inlet Hose/Drain Hose

• Operating Pressure: 20–100 psi (1-8 Bar)
• Inlet Hose Length: 6 ft. (1.8 m)
• Drain Hose Length: 4 ft. (1.3 m)

Approximate Water Usage

• Average Total Water Usage Per Cycle: 24.65 gallons (93.3 liters)*
• Average Hot Water Usage (Warm Water Cycle): 0.53 gallons (2 liters)
• Average Hot Water Usage (Hot Water Cycle): 6.51 gallons (24.6 liters)
• Extract Speed: Max G-Force 144 / Max 700
• Motor Size: ½ hp (0.37 kW)

Dimensions

• Depth: 26 in. (660 mm)
• Width: 27 in. (686 mm)
• Height: 42.5 in. (1,080 mm)
• Lid Opening: 17 in. (432 mm)

Crated Dimensions

• Depth: 27.5 in. (699 mm)
• Width: 29 in. (737 mm)
• Height: 49 in. (1,255 mm)

Approximate Weight

• Uncrated: 145 lb. (65.8 kg)
• Crated: 163 lb. (73.9 kg)
