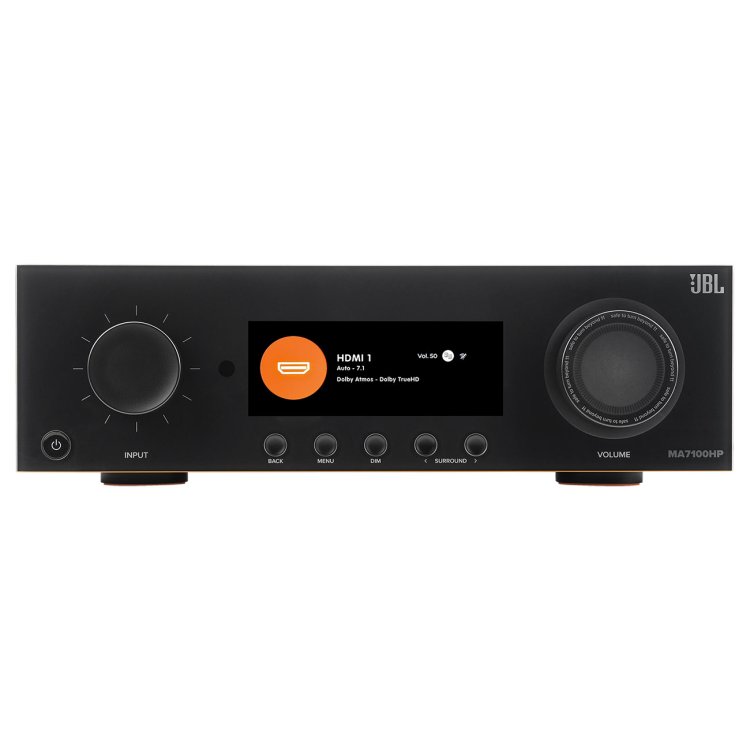

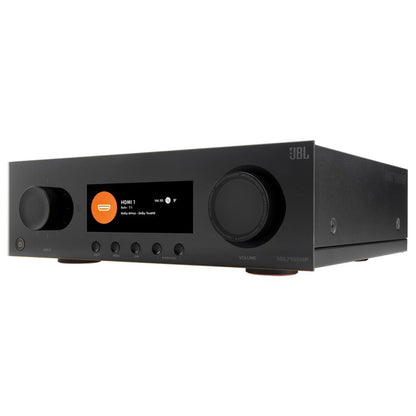

JBL 220 volt audio video receiver amp 220v 240 volt 7.2 channel 8k AV receiver amplifier 110 220 240 volts 50 60 hz model JBLMA7100/220v

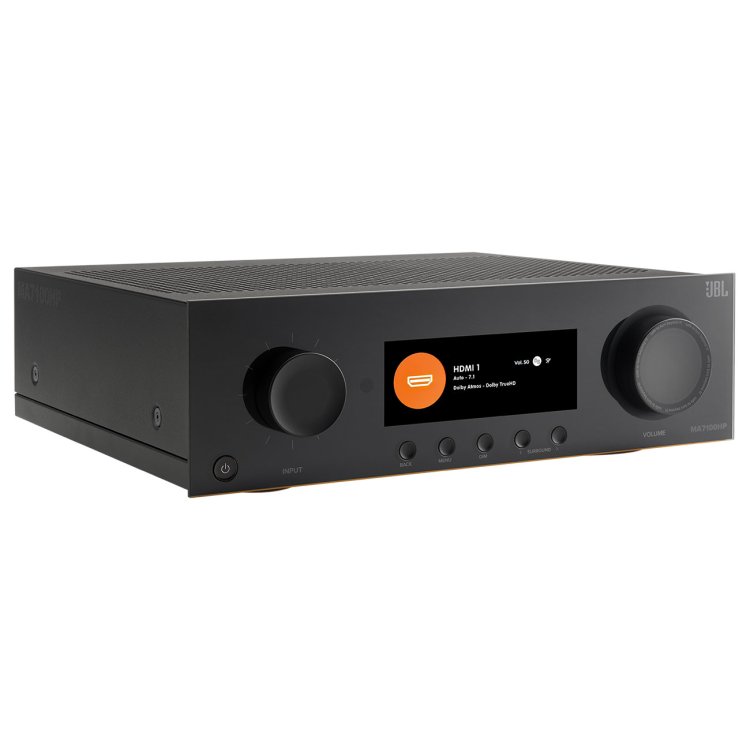

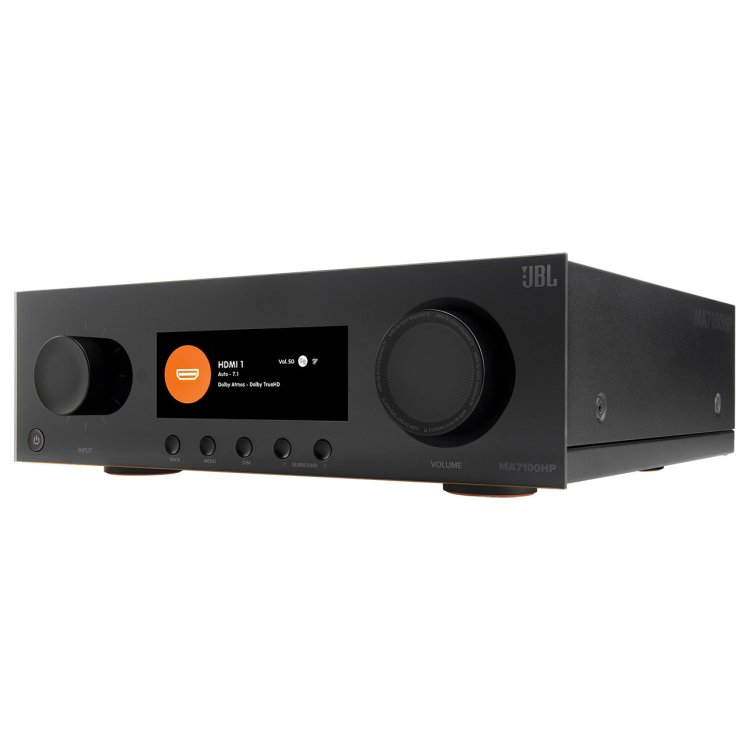

The JBL MA7100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. Designed with a passion for music and movies, the MA7100HP brings both to life with true high fidelity. The MA7100HP features seven channels of low-noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay 2, Google Chromecast, and Bluetooth AptX Adaptive.
Taking performance to the next level, the MA7100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allowing integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can also be made available in a secondary location. In addition to physical controls, the MA7100HP allows for IP control for third-party control system integration.
Key Features
High-performance 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
Seven channels of powerful low noise Class D amplification for real world power to all channels
EZ Set EQ provides easy-to-use room equalization for optimized sound quality
Comes Dirac Live Ready, fully prepared to run Dirac Live – the world’s most advanced room correction software
Features
Stunning audio and video performance High-performance 5.2, 7.2 & 9.2-channel AV receiver that delivers stunning realism with the latest 4K & 8K video for the ultimate home cinema experience
Intuitive setup with a minimalist modern design Designed for ease of use with a sleek, modern aesthetic that fits into any home entertainment setup
Seamless integration Works with smart TVs, gaming consoles, streaming devices, cable boxes and more with 4 & 6 HDMI inputs and 1 & 2 outputs, plus eARC
High-performance immersive surround sound Dolby Atmos and DTS:X decoding, supports up to 7.1.2 or 5.1.4 channel configurations
Bring both music and movies to life with true high fidelity Designed with a passion for music and movies, bringing both to life with true high fidelity
Bluetooth and network streaming Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
On-screen setup and operation On-screen display for easy system setup and operation (via HDMI)
Powerful amplification Five, Seven and Nine channels of low noise Class D amplification for real world power to all channels
Ready for Dirac Live® room correction* Comes Dirac Live Ready, fully prepared to run Dirac Live – the world’s most advanced room correction software
EZ Set EQ EZ Set EQ provides easy-to-use room equalization for optimized sound quality
Specifications
Amplifier Section
Channels: 7.2
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 125 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 175 W RMS
Video Features
HDMI eARC: Yes
HDMI Audio Return Channel: Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
File Format Support: - MP3 / MPEG-4 AAC: up to 48 kHz / 320 kbps - WMA: up to 48 kHz / 192 kbps - ALAC: up to 192 kHz / 24-bit - FLAC: up to 192 kHz / 24-bit - PCM / WAV / AIFF: up to 192 kHz / 24-bit
Pure Direct: Yes
EZ/Set EQ: Yes
Dirac Live Ready: Yes (License purchased separately)
Front channel bi-amp: Yes
DA Converter: 192kHz/24-bit

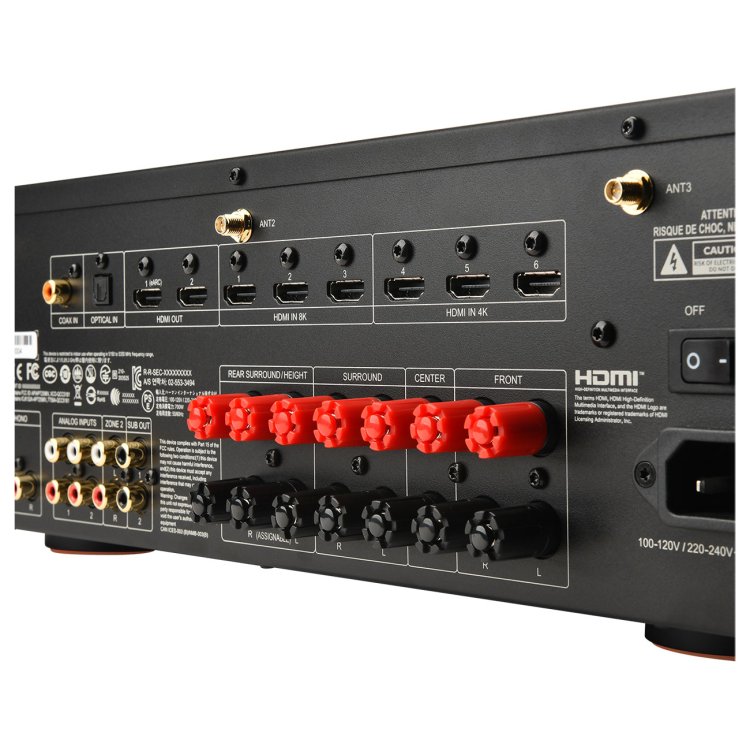

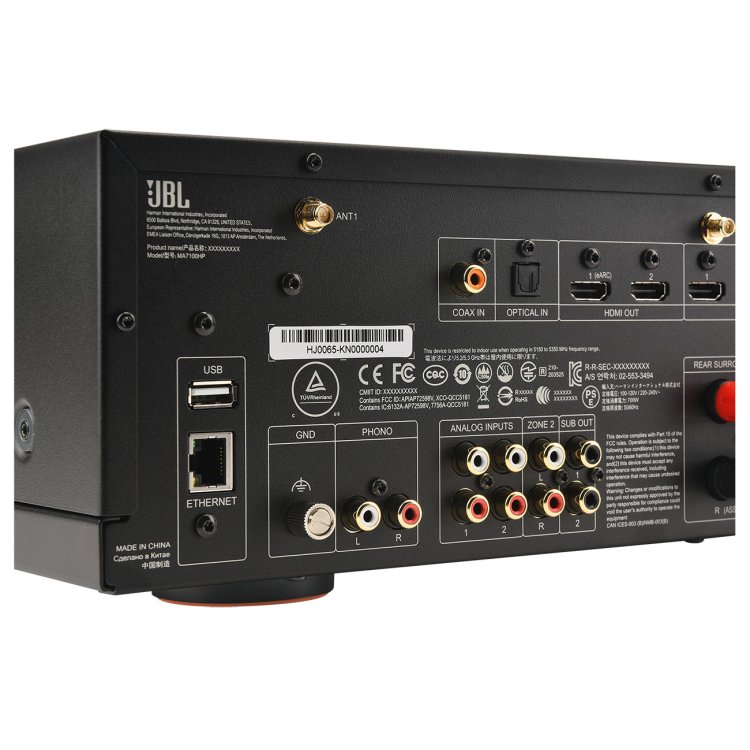

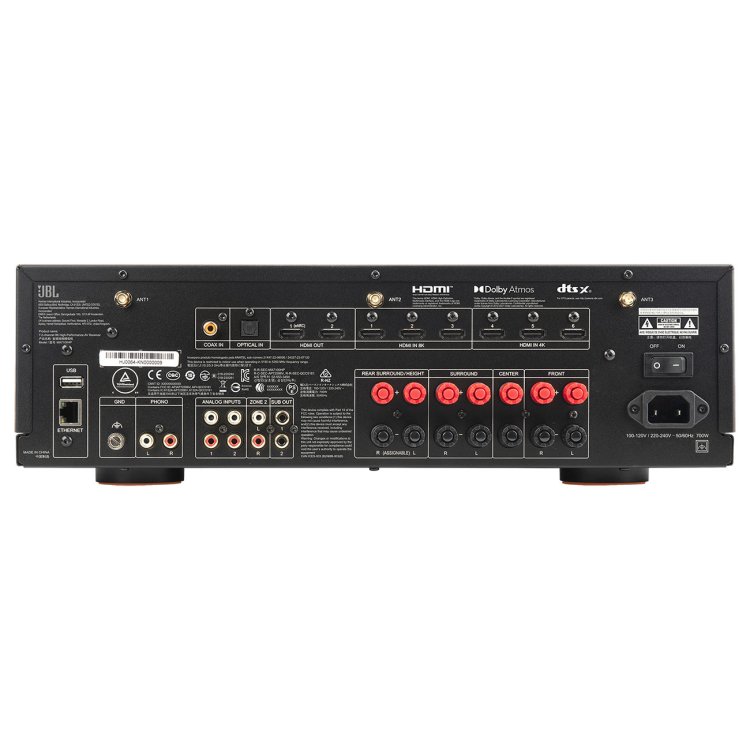

Connectivity
HDMI Input/Output: 6 / 2
Wi-Fi: Yes (2.4 / 5GHz)
Bluetooth Receive: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Bluetooth Transmit: Yes
Digital Audio Input: 1 Coax, 1 Optical
Stereo Analog Input: 2 single-ended RCA
Pre-Out (RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2
General

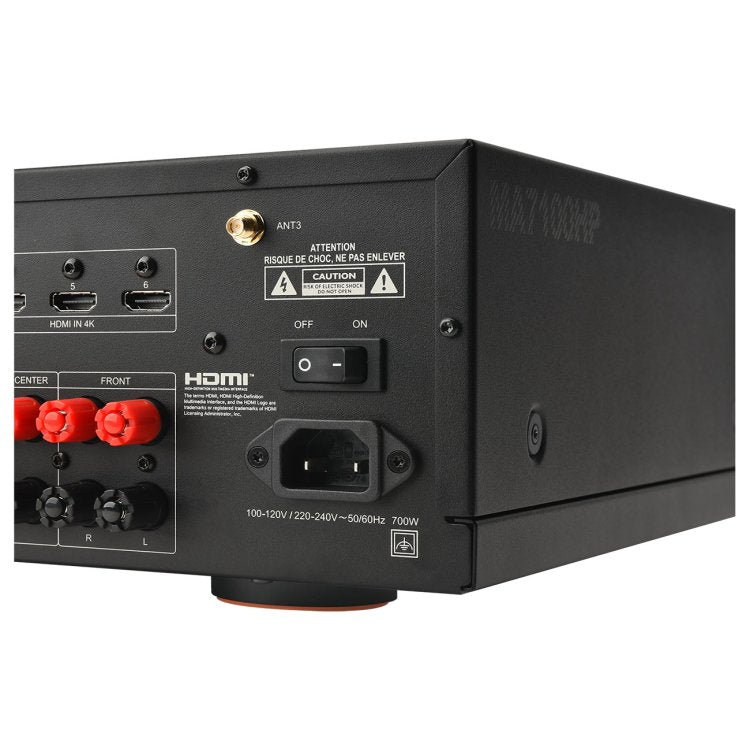

Mains Voltage: 110 – 240V, 50–60Hz
Max. Power Consumption: 700W
Standby Power Consumption: <0.5W
Dimensions (H x W x D): 5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)
Weight: 16.4lb (7.4kg)

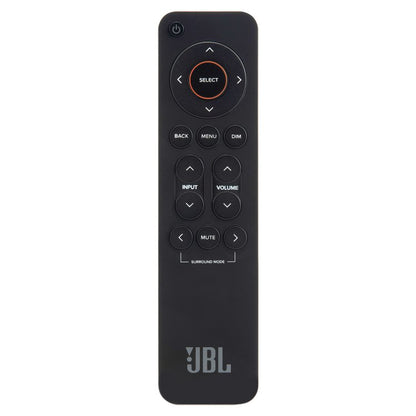

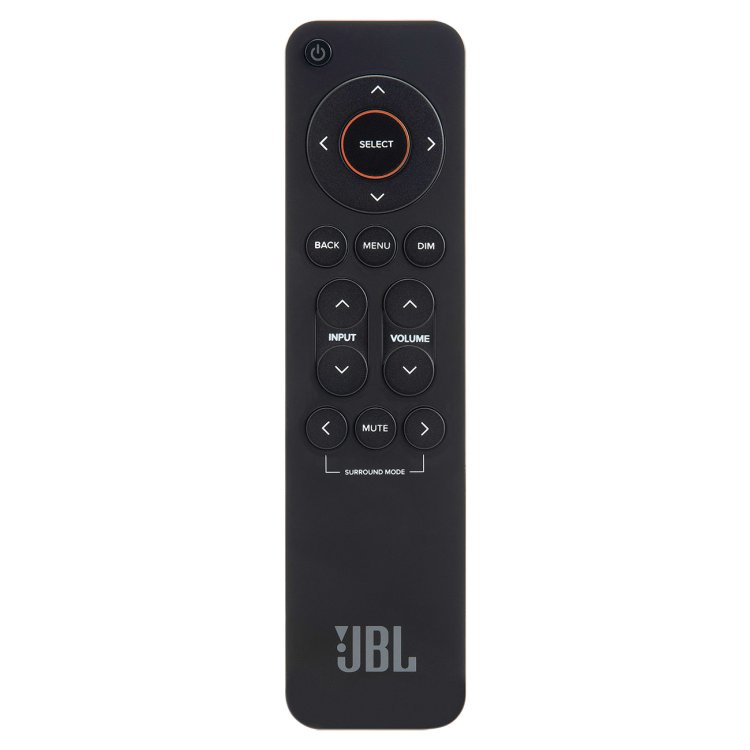

Supplied Accessories: IR remote, 2x AAA batteries, Bluetooth antenna, 2x Wi-Fi antenna, power cord
