JBL 220 volt audio video receiver amp 220v 240 volt 7.2 channel 8k AV receiver amplifier 110 220 240 volts 50 60 hz model JBLMA710/220v

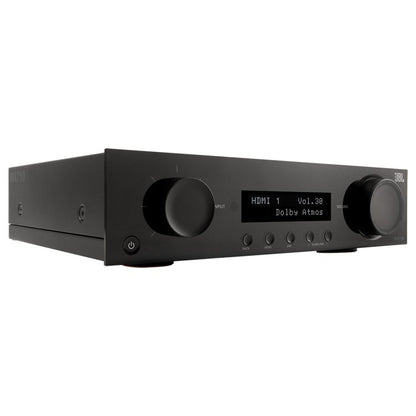

The JBL MA710 is an AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 1 output, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA710 features seven channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Audio sources can be played to a second Zone, making audio available in a secondary location. In addition to physical controls, the MA710 allows for IP control for third party control system integration.
Key Features
7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 1 output, plus eARC
Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
Moving magnet phono input for connecting a turntable
On-screen display for easy system setup and operation (via HDMI)
Seven channels of low noise Class D amplification for real world power to all channels
EZ Set EQ provides easy-to-use room equalization for optimized sound quality
Features
Stunning audio and video performance High-performance 5.2, 7.2 & 9.2-channel AV receiver that delivers stunning realism with the latest 4K & 8K video for the ultimate home cinema experience
Intuitive setup with a minimalist modern design Designed for ease of use with a sleek, modern aesthetic that fits into any home entertainment setup
Seamless integration Works with smart TVs, gaming consoles, streaming devices, cable boxes and more via 4 & 6 HDMI inputs and 1 & 2 outputs, plus eARC
High-performance immersive surround sound Dolby Atmos and DTS:X decoding, supports up to 7.1.2 or 5.1.4 channel configurations
True high-fidelity audio Designed with a passion for music and movies, bringing both to life with authentic sound quality
Bluetooth and network streaming Stream music wirelessly using Apple AirPlay 2, Google Chromecast, and Bluetooth
On-screen setup and operation On-screen display for easy system setup and control via HDMI
Powerful amplification Provides five, seven, and nine channels of low noise Class D amplification to deliver real-world power to all channels
Ready for Dirac Live® room correction Fully prepared to run Dirac Live – the world’s most advanced room correction software
EZ Set EQ Easy-to-use room equalization system for optimized sound quality based on your space
Specifications
Amplifier Section
Channels: 7.2
Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 110 W RMS
Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 160 W RMS
Video Features
HDMI eARC: Yes
HDMI Audio Return Channel: Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3
File Format Support: - MP3 / MPEG-4 AAC: up to 48 kHz / 320 kbps - WMA: up to 48 kHz / 192 kbps - ALAC: up to 192 kHz / 24-bit - FLAC: up to 192 kHz / 24-bit - PCM / WAV / AIFF: up to 192 kHz / 24-bit
Pure Direct: Yes
EZ/Set EQ: Yes
Front channel bi-amp: Yes
DA Converter: 192kHz/24-bit

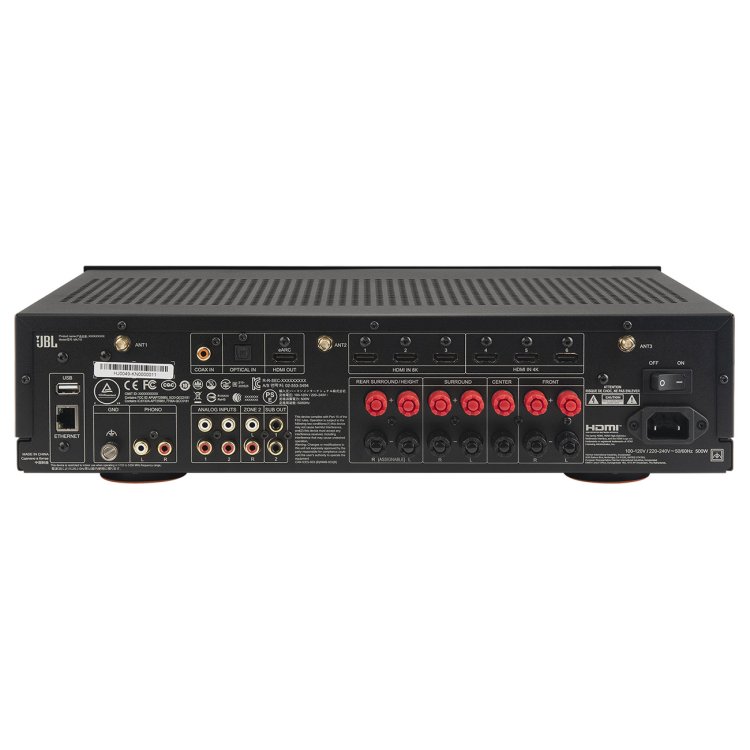

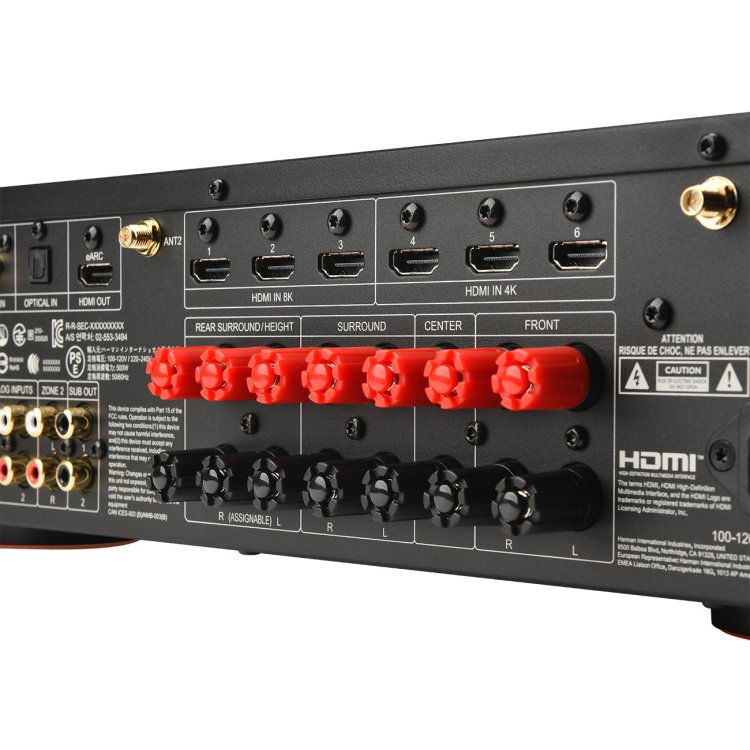

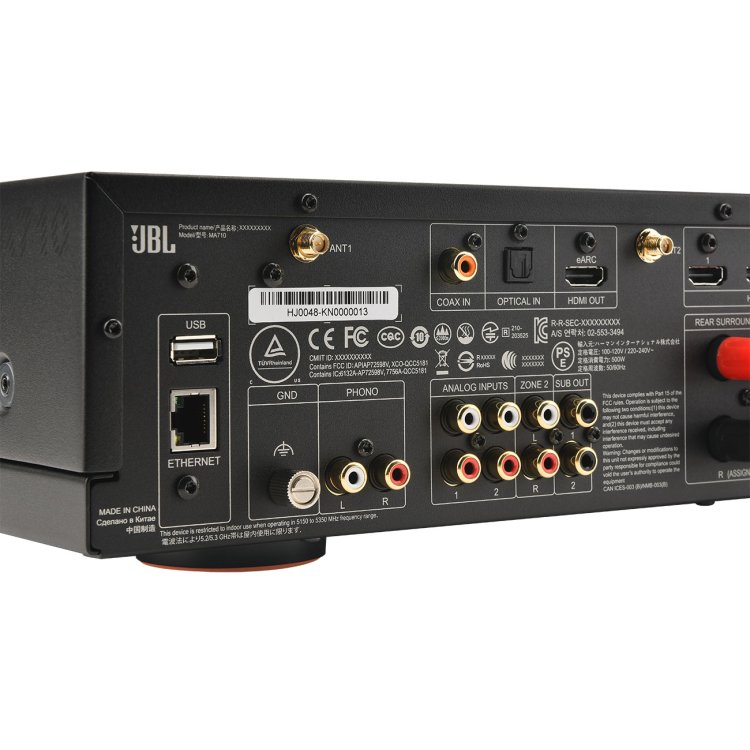

Connectivity
HDMI Input/Output: 6 / 1
Wi-Fi: Yes (2.4 / 5GHz)
Bluetooth Receive: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Digital Audio Input: 1 Coax, 1 Optical
Stereo Analog Input: 2 single-ended RCA
Pre-Out (RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2
General

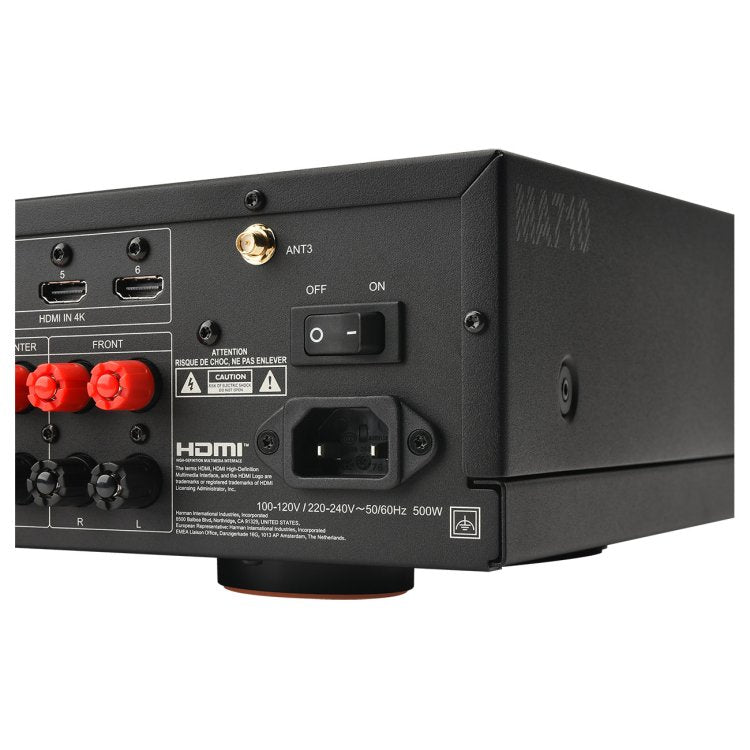

Mains Voltage: 110 – 240V, 50–60Hz
Max. Power Consumption: 500W
Standby Power Consumption: <0.5W
Dimensions (H x W x D): 4.3” x 17.0” x 13.7” (109.9mm x 432.0mm x 347.6mm)
Weight: 13.8lb (6.3kg)

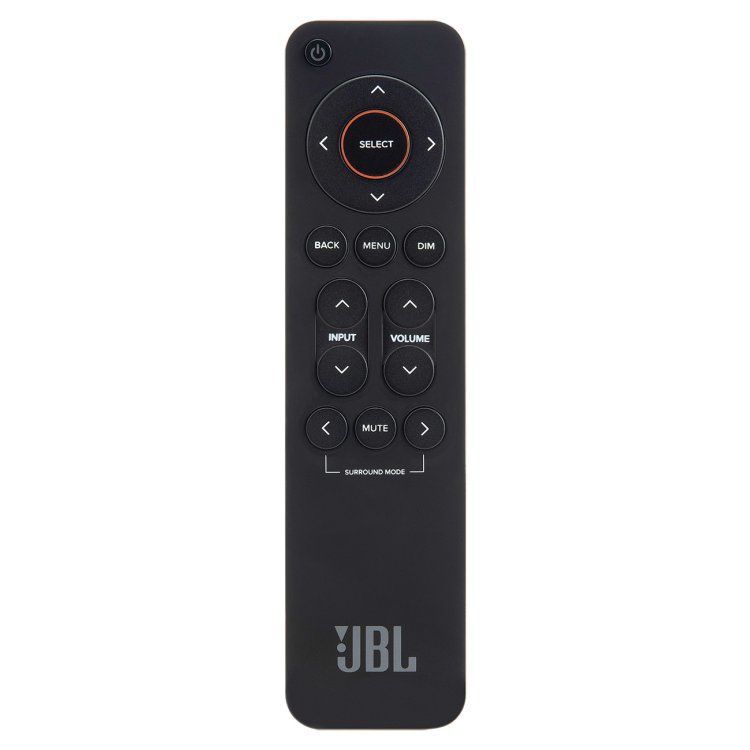

Supplied Accessories: IR remote, 2x AAA batteries, Bluetooth antenna, 2x Wi-Fi antenna, power cord
