JBL MA510 220 Volt Receiver - 5.2 Channel & 220 Volts Amplifier

JBL MA510 220 Volt Receiver - 5.2 Channel & 220 Volts Amplifier

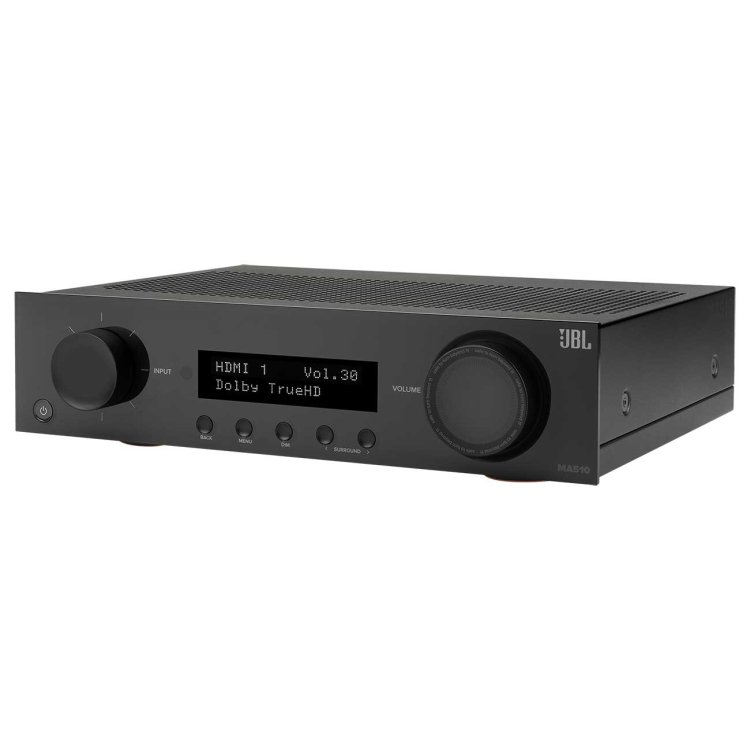

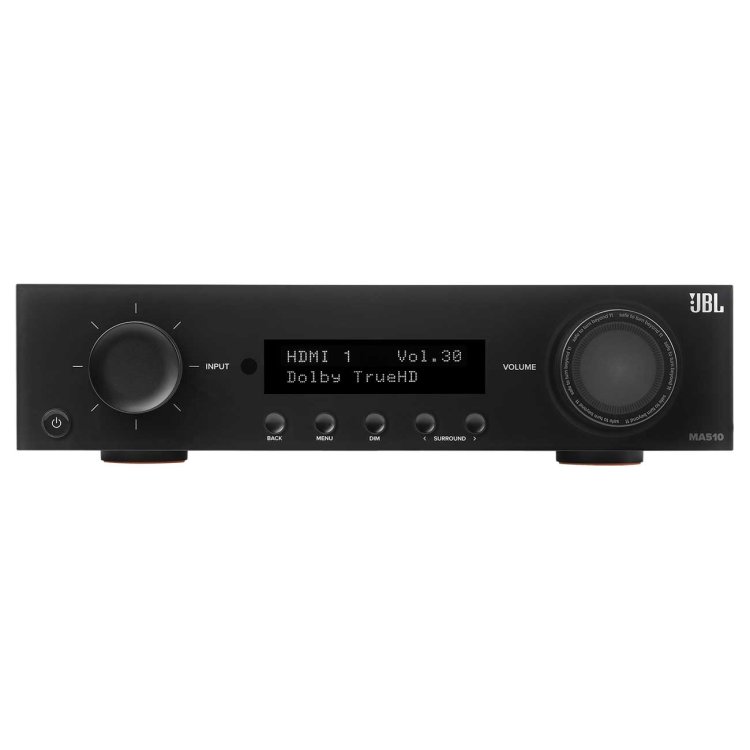

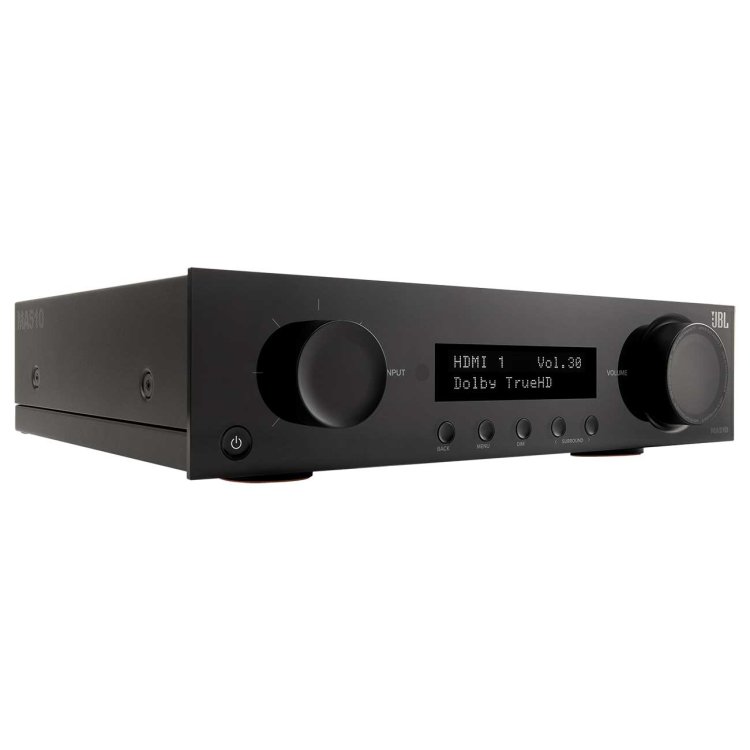

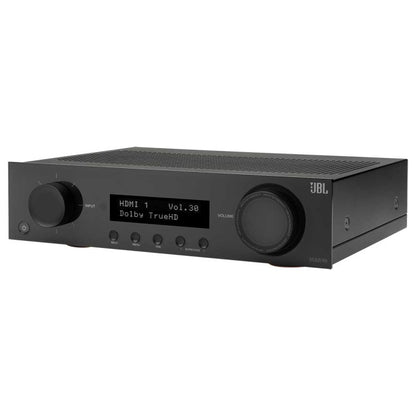

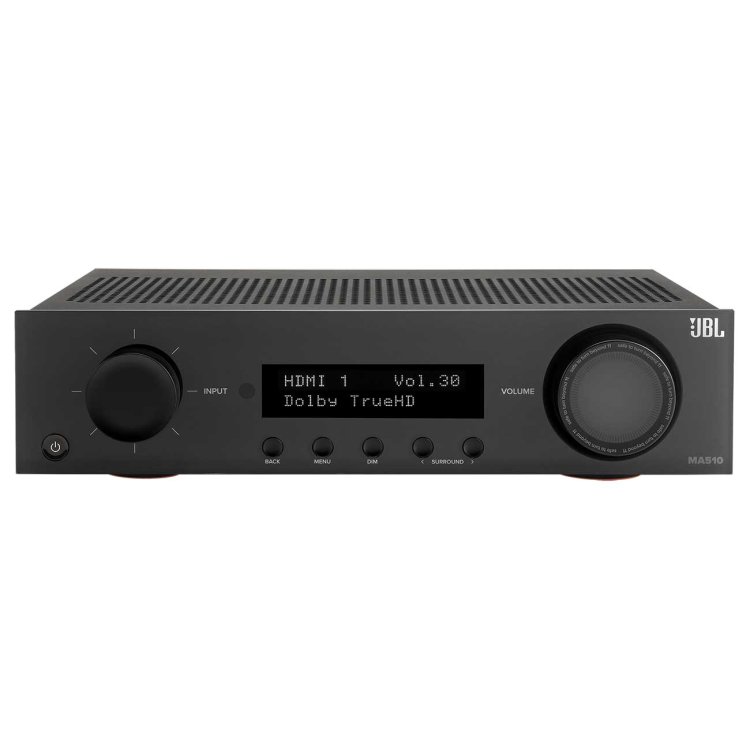

The JBL MA510 brings 8K-ready HDMI switching, clean power, and simple setup into one unit. As a 220 volt receiver, it fits easily into any international home theater since it accepts 110–240V and doesn’t need converters. The amp section uses low-noise Class D power across all five channels, so movies and music hold their clarity even when the volume climbs.

Four HDMI 2.1 inputs handle 8K/60 and 4K/120 signals, plus eARC for clean audio return from a TV or projector. Dolby and DTS formats decode natively, keeping surround tracks intact. Gaming features like VRR, ALLM, QFT, and HFR make it a stronger match for newer consoles.

Bluetooth gives you quick streaming, and Wi-Fi adds AirPlay 2, Chromecast, and high-resolution network playback. The MA510 supports FLAC, ALAC, WAV, AIFF, and more, all the way up to 192 kHz / 24-bit. EZ Set EQ helps shape the room without digging through complicated menus, and the on-screen display keeps setup straightforward.

Dual subwoofer outputs, coaxial and optical inputs, and two analog RCA inputs round out the connections. At 5.4 kg, it’s compact enough for tight racks while still delivering the output expected from a 220 volts amplifier.

If you need a receiver that handles modern video formats, high-resolution audio, and global voltage without headaches, the MA510 covers all the important bases.

Additional Specifications

Amplifier Section

• Channels: 5.2
• Rated Power @ 8Ω (20Hz–20kHz, 2 channels driven, 0.5% THD max): 75 W RMS
• Rated Power @ 4Ω (20Hz–20kHz, 2 channels driven, 0.5% THD max): 100 W RMS

Video Features

• HDMI eARC: Yes
• HDMI Audio Return Channel: Yes
• 8K HDMI Input Connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 4
• HDMI 2.1 Enhanced Gaming Features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
• HDR 10+, Dolby Vision: Yes, Yes

Audio Features

• File Format Support:
  - MP3 / MPEG-4 AAC: up to 48 kHz / 320 kbps
  - WMA: up to 48 kHz / 192 kbps
  - ALAC: up to 192 kHz / 24-bit
  - FLAC: up to 192 kHz / 24-bit
  - PCM / WAV / AIFF: up to 192 kHz / 24-bit
• Pure Direct: Yes
• EZ/Set EQ: Yes
• DA Converter: 192 kHz / 24-bit

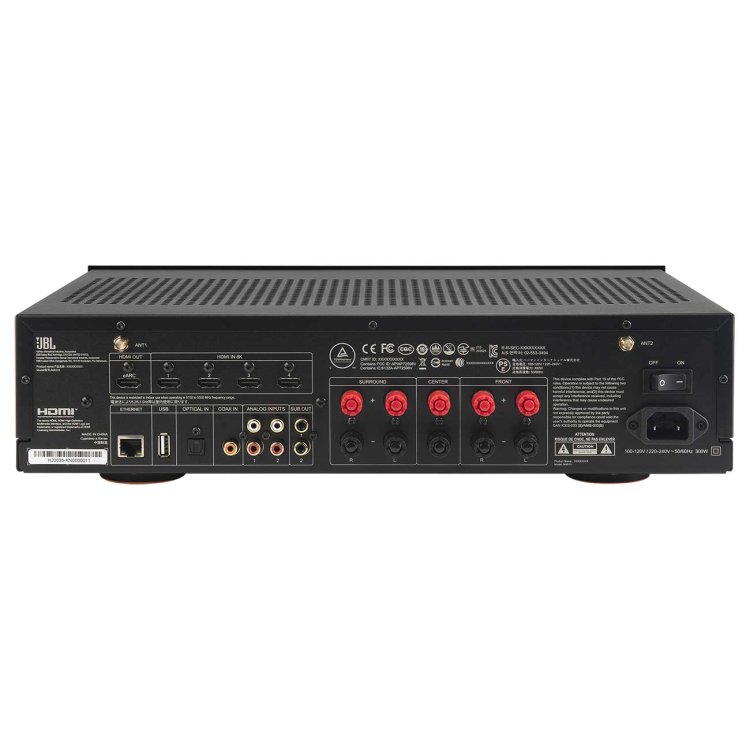

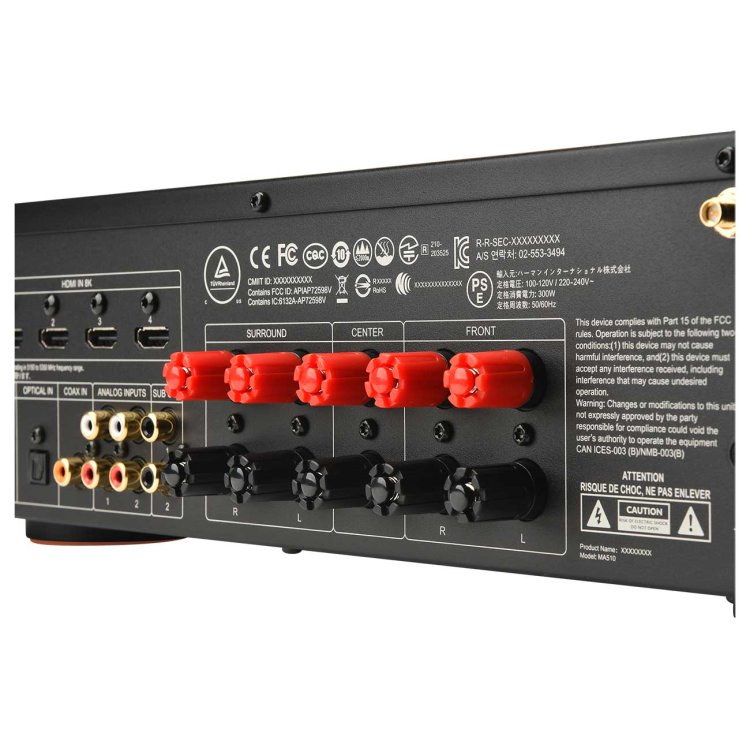

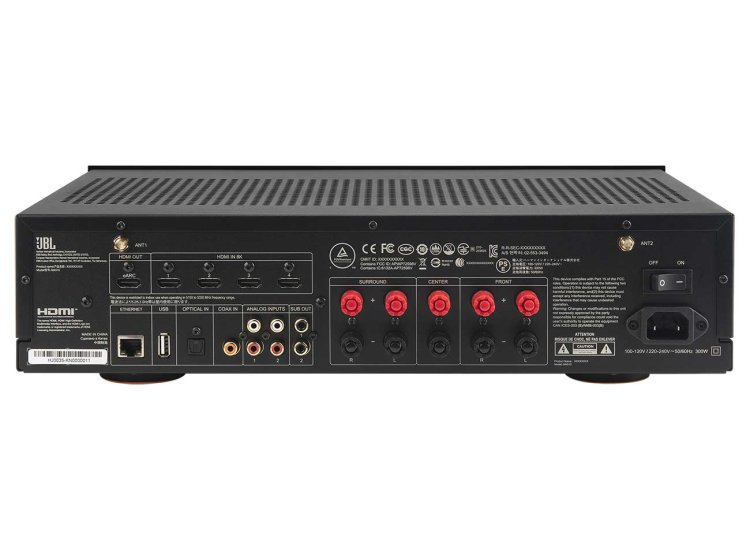

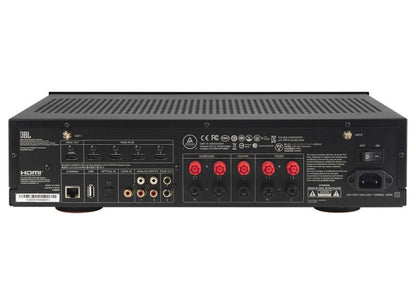

Connectivity

• HDMI Input/Output: 4 / 1
• Wi-Fi: Yes (2.4 / 5GHz)
• Bluetooth Receive: Yes (v4.1, Low Energy)
• Digital Audio Input: 1 x Coaxial, 1 x Optical
• Stereo Analog Input: 2 x Single-Ended RCA
• Pre-Out (Single-Ended RCA): Subwoofer 1, Subwoofer 2

General

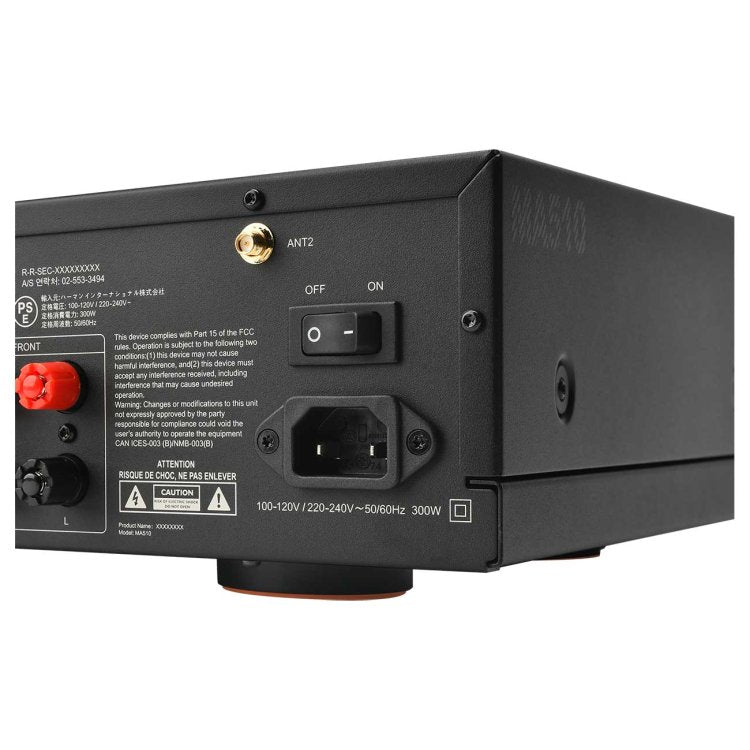

• Mains Voltage: 110–240V, 50–60Hz
• Max. Power Consumption: 300W
• Standby Power Consumption: <0.5W
• Dimensions (H x W x D): 4.3” x 17.0” x 13.7” (109.9 mm x 432.0 mm x 347.6 mm)
• Weight: 12 lb (5.4 kg)

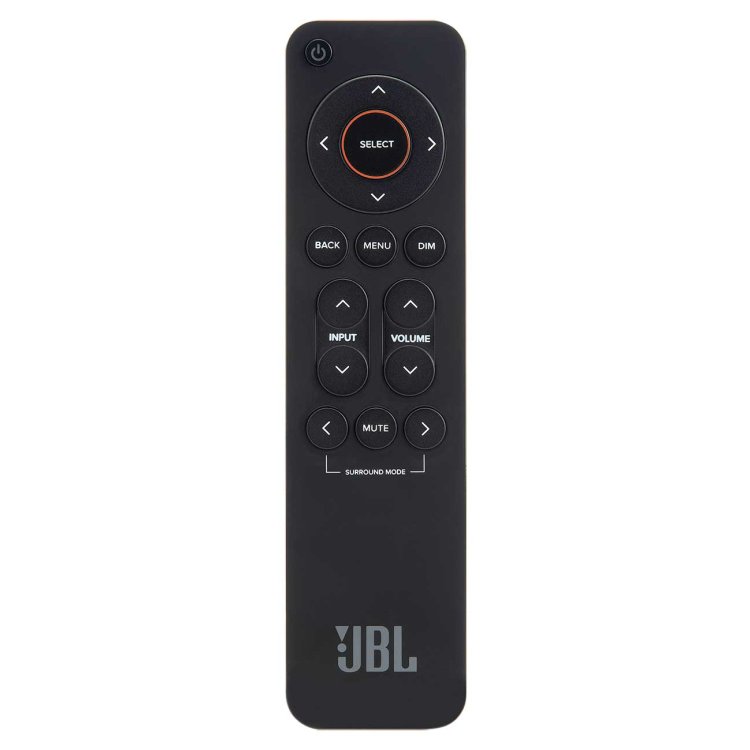

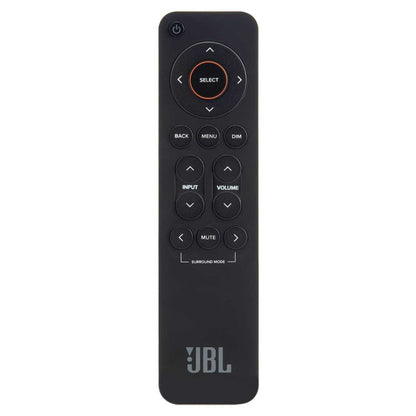

• Supplied Accessories: IR remote, 2 x AAA batteries, Bluetooth antenna, 2 x Wi-Fi antennas, Power cord
