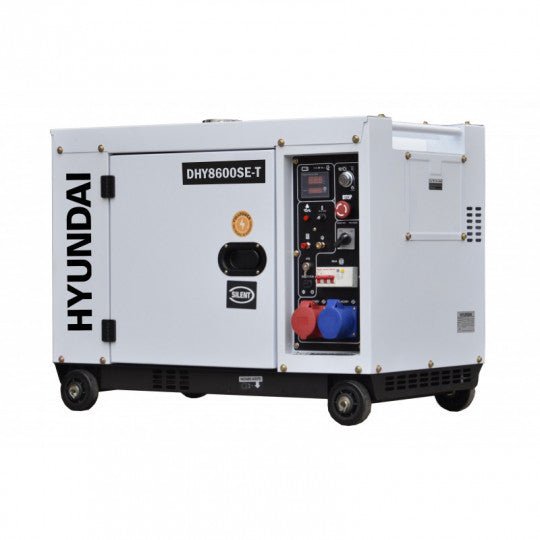

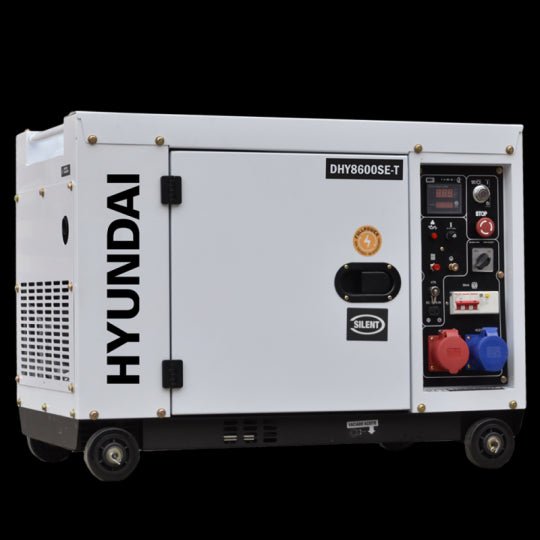

Hyundai DHY8600SE 220 Volt 50 Hz Diesel Generator

Hyundai DHY8600SE 220 Volt 50 Hz Diesel Generator

The Hyundai DHY8600SE Silent Model is a 220 volt and 400V diesel generator designed for users who need steady power in demanding conditions.

As a 50 hz diesel generator, it provides dependable performance for homes, workshops, or small industrial applications, and it also supports situations where a 220v or 240 volts diesel setup is necessary. Its maximum output reaches 7.9 kVA, making it suitable as an emergency power source or as a generator for job sites where stable electricity is essential.

This generator operates with a 12 hp, 4-stroke, air-cooled diesel engine built on a 498 cc platform. It starts electrically and includes an integrated battery, creating a system that is easy to operate even for less experienced users.

A sound-insulated housing keeps noise levels low, giving you strong power without causing unnecessary disturbance. Important operating data such as voltage, current, frequency, and running hours appear on the digital LED display, offering clear insight into generator behavior while it is running.

With a 12-liter diesel tank and an efficient engine, the generator can work for up to ten hours at half load. Features such as overload protection and low-oil shutdown help protect the internal components from damage, while the AVR system keeps the current stable for sensitive equipment.

The unit includes both 230V and 400V outputs, with a 32A 230V connection and a 400V connection that supports larger tools or machinery. An ATS port is also available if automatic start functionality is required during power outages.

Even though the generator weighs around 162 kilograms, it stands on wheels that make movement easier. The electric start, clear display, and well-protected components contribute to a design that requires minimal maintenance. With strong output ratings of 7.5 kVA at 400V and 5.5 kW at 230V, along with a maximum of 7.9 kVA, this diesel model is built for consistent performance.

The Hyundai DHY8600SE is a practical choice for anyone needing steady 50 hz power, long run times, and quiet operation in a compact and durable enclosure.

All Features

• Maximum power of 7.9 kVA
• 12 hp 4-stroke 1-cylinder diesel engine
• 230V & 400V connections / ATS
• Emergency generator, air-cooled
• Quietly through disguise
• LED display
• Low Oil Protection
• Easy to use
• Stable current through AVR
• With an electric start
• Protected against overload
• Protected against low oil level
• ATS connection (ATS optionally available)
• Built-in fuse

Specifications

• Engine Type: 4-Stroke, 1-Cylinder, Fan Cooling
• Engine Power: 12.0 Hp
• Displacement: 498cc
• Oil Capacity: 1.75L
• Tank Capacity: 12L (Diesel)
• Guaranteed Sound Power Level LwA: 96dB
• Generator Designation: D500E
• Launch System: Electric Start
• Generator Frequency: 50Hz
• Generator Nominal Voltage: 400V / 230V
• Generator Rated Current: 14A (400V) / 28a (230V)
• Generator Rated Speed: 3,000 rpm
• Generator Rated Power: 7.5kVA (400V) / 5.5kW (230V)
• Generator Max Power: 7.9kVA (400V) / 6.0kW (230V)
• Ac Output: 1 X 400V (16A) / 1 X 230V (32A)
• Connections: Ats Connection (Ats Box Optionally Available), Earth Fuse
• Generator Operating Time: 10 H (At 50% Power)
• Size (LxWxH): 920x520x720mm
• Weight: 162kg
