Features

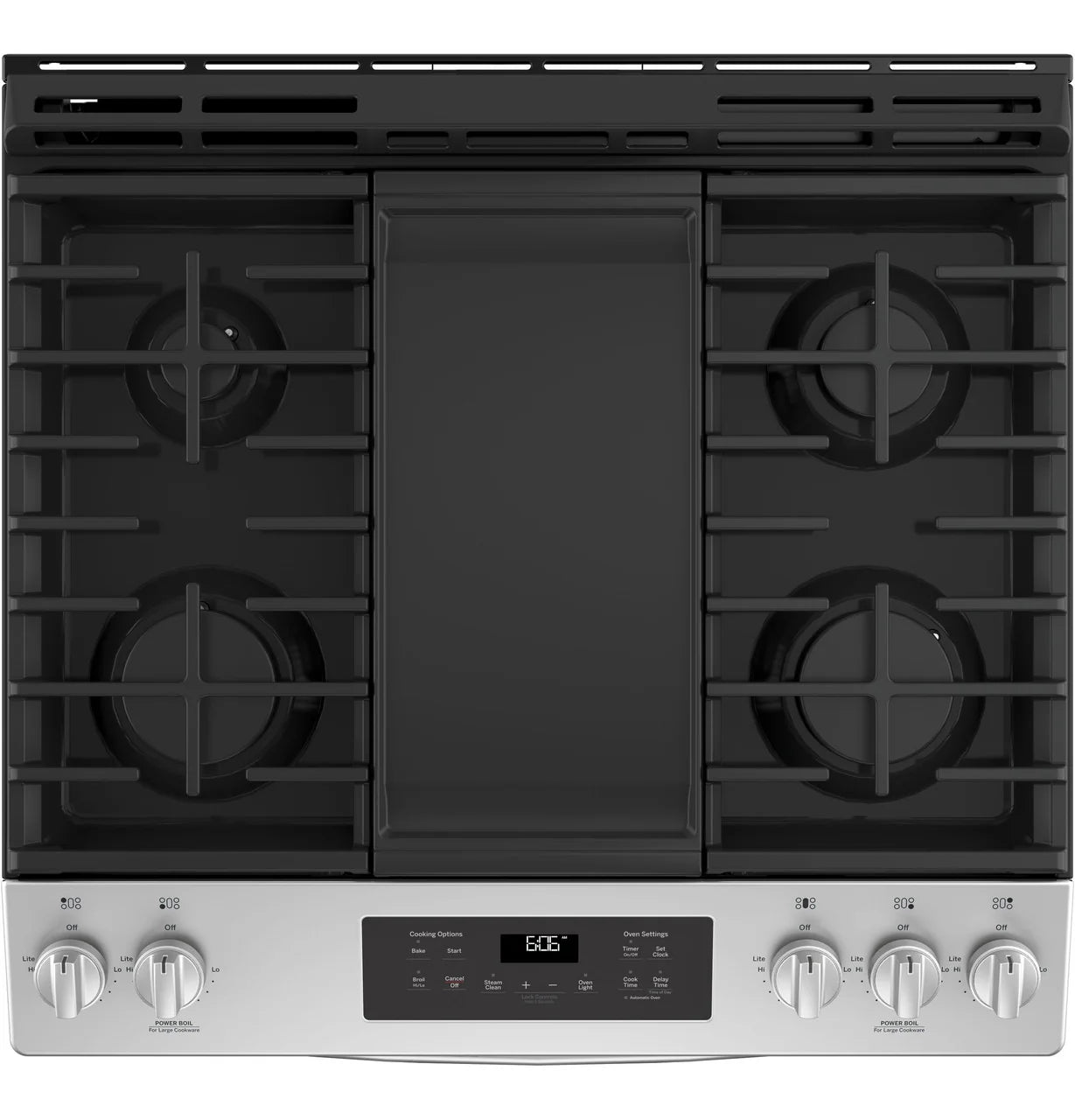

• Edge-to-edge cooktop – Provides a larger cooking surface, allowing pots and pans of all sizes to move easily between burners.

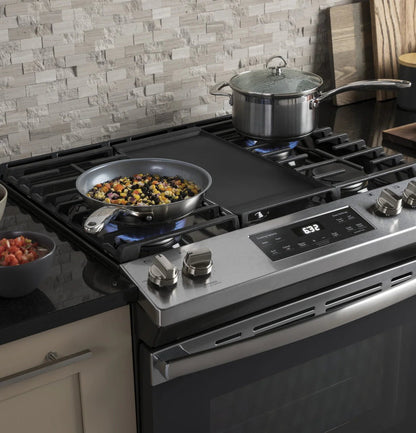

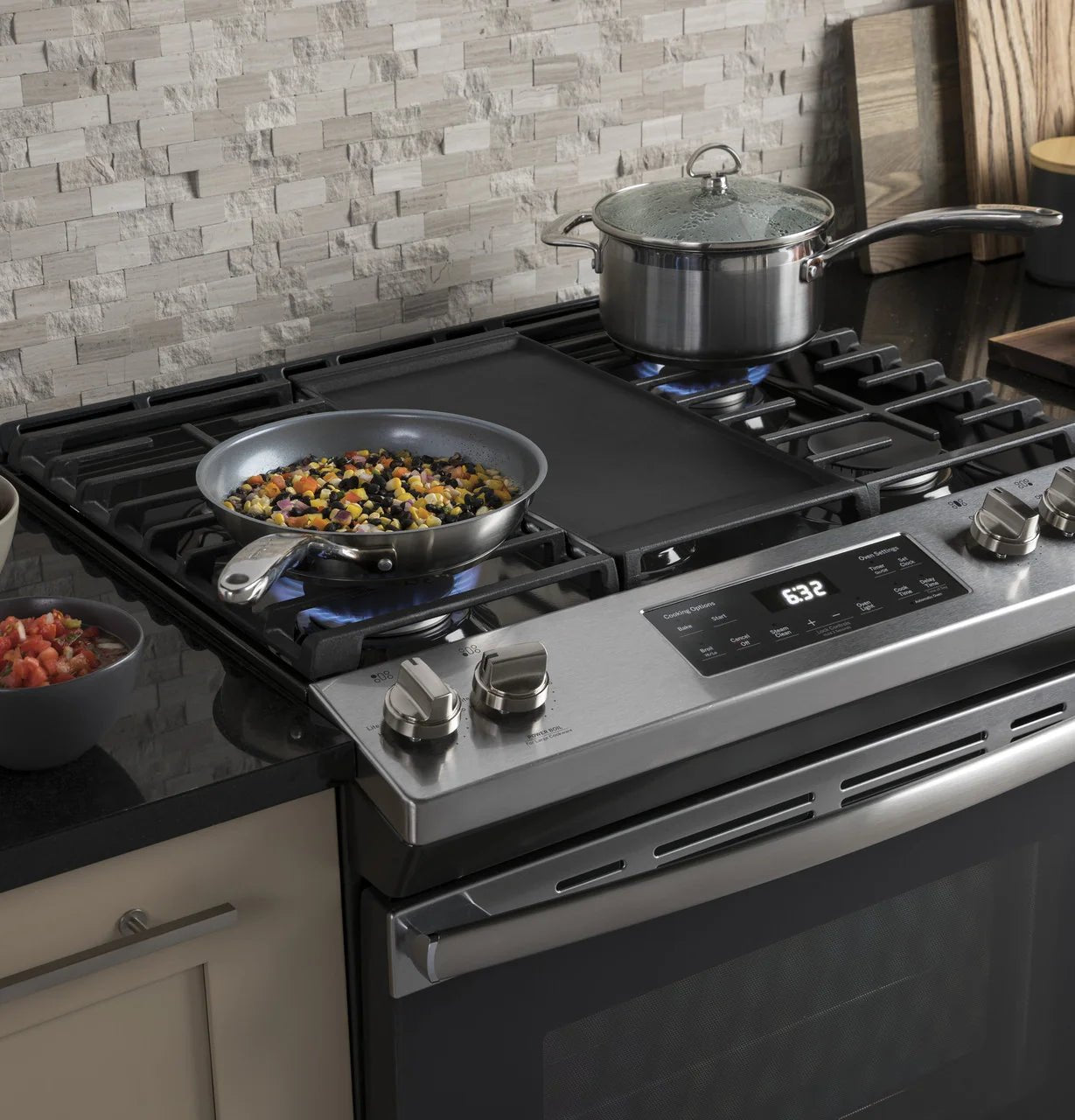

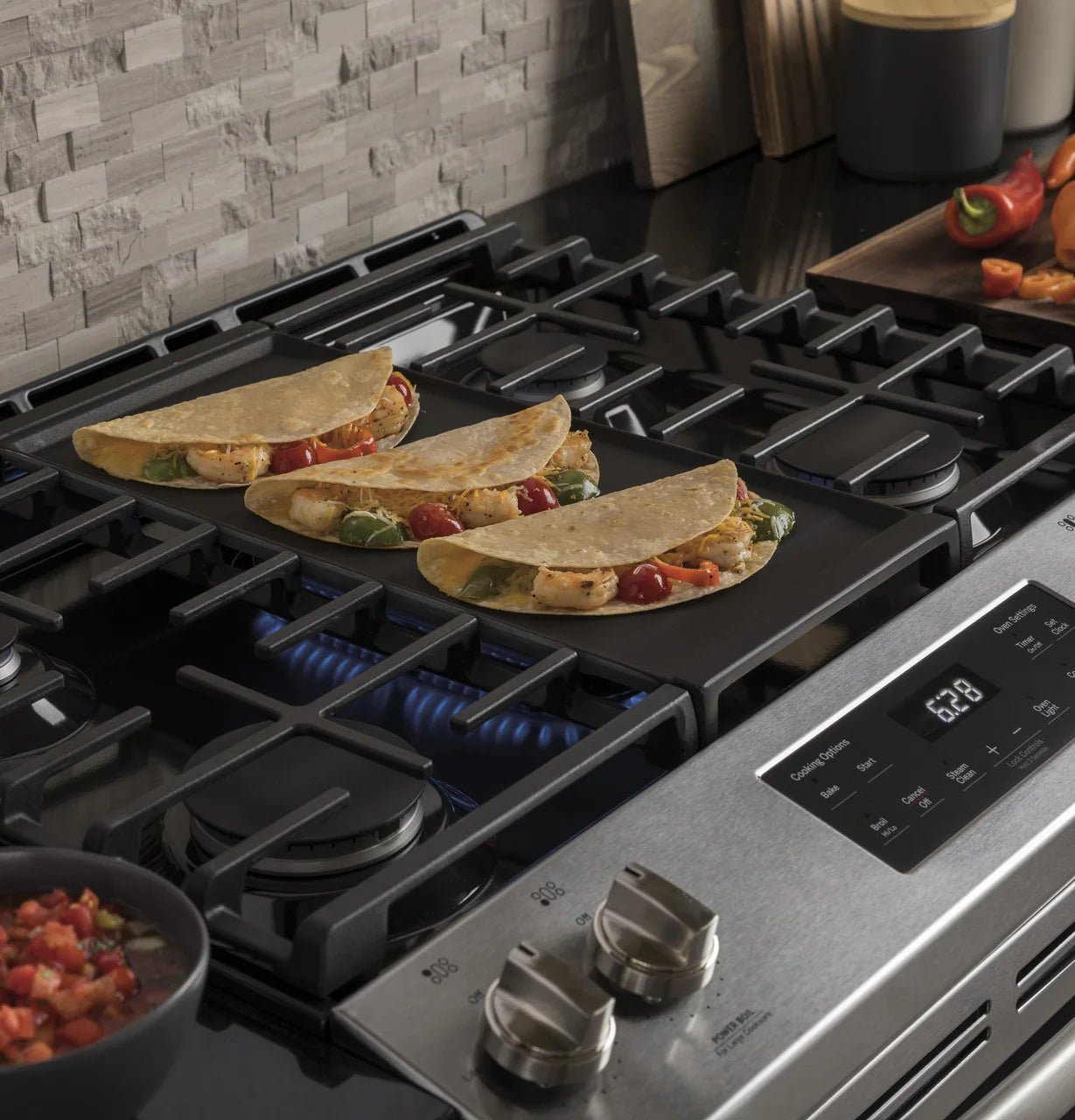

• Extra-large integrated griddle – Cook up to six grilled cheeses at once on the industry’s largest integrated griddle.

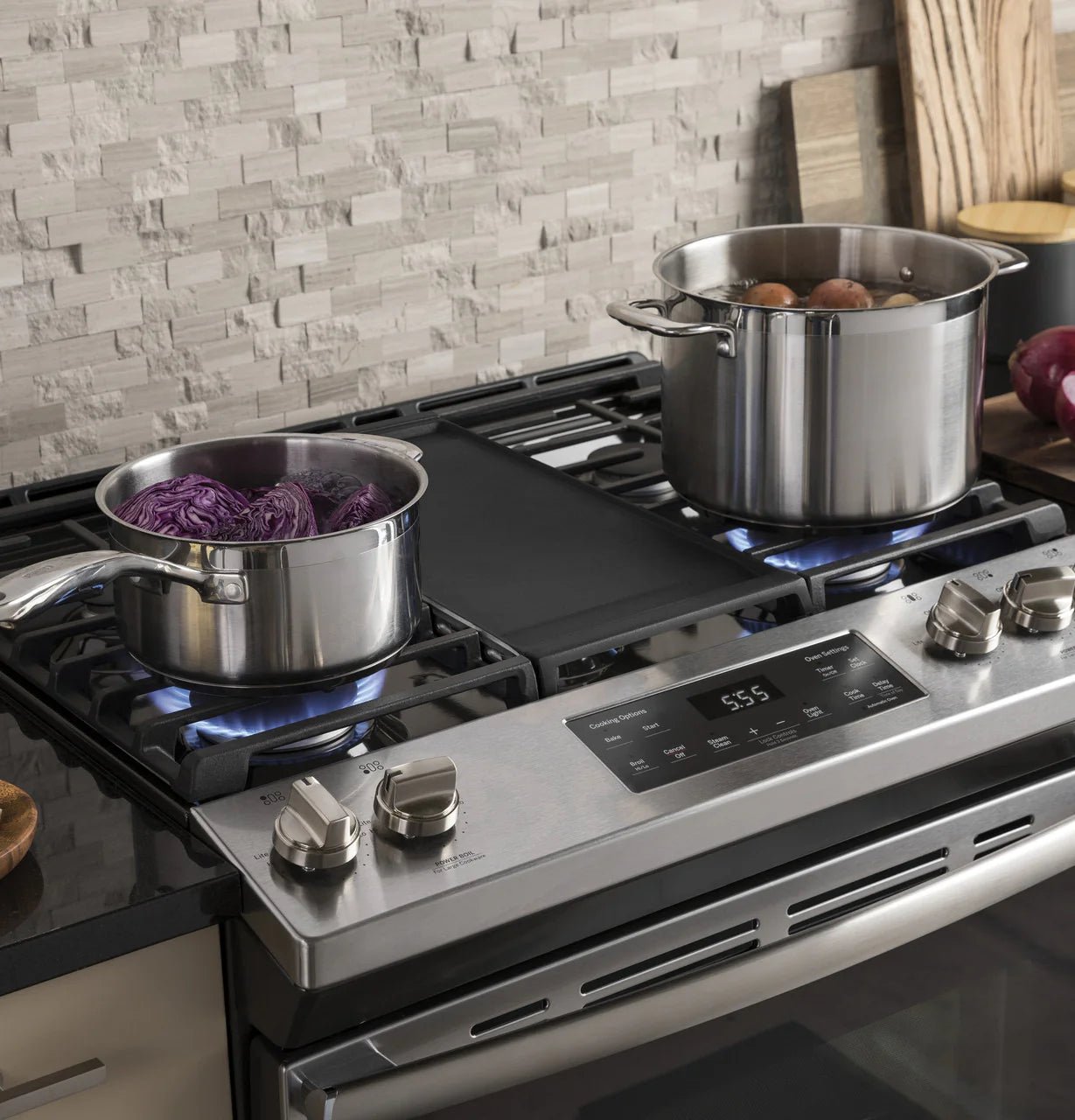

• Two 15,000 BTU Power Boil burners – Deliver high heat for fast boiling and faster cooking.

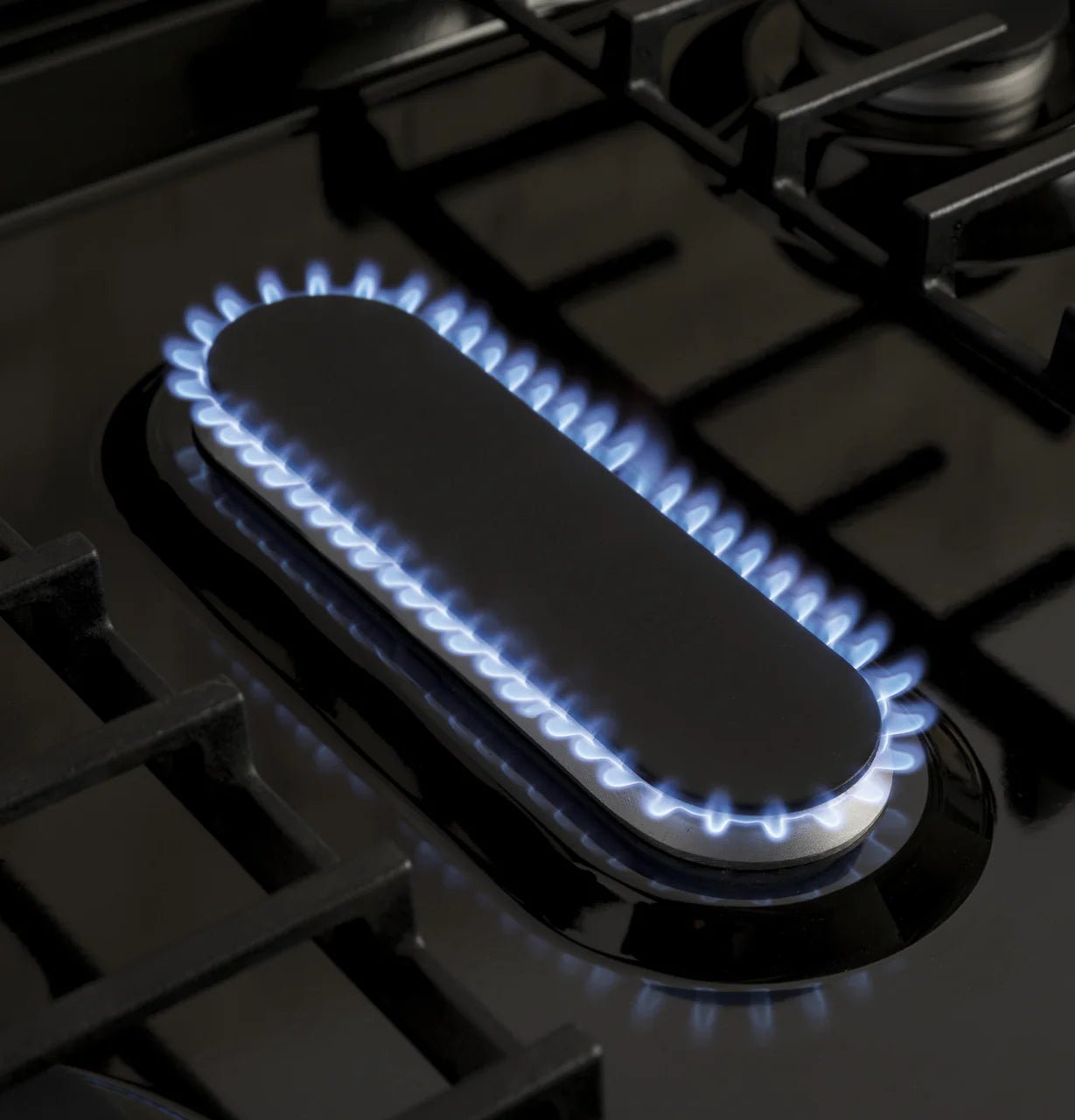

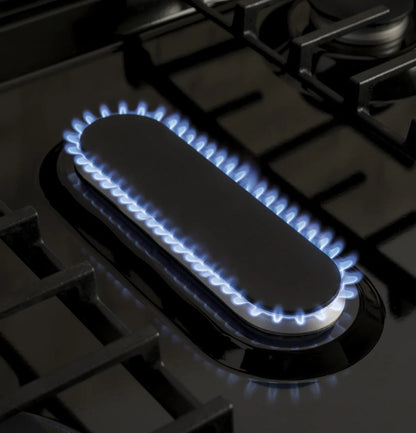

• 10,000 BTU oval burner – Ideal for griddle cooking and odd-shaped cookware.
• Steam Clean – Quickly clean the oven with steam; no chemicals or extra kits required.

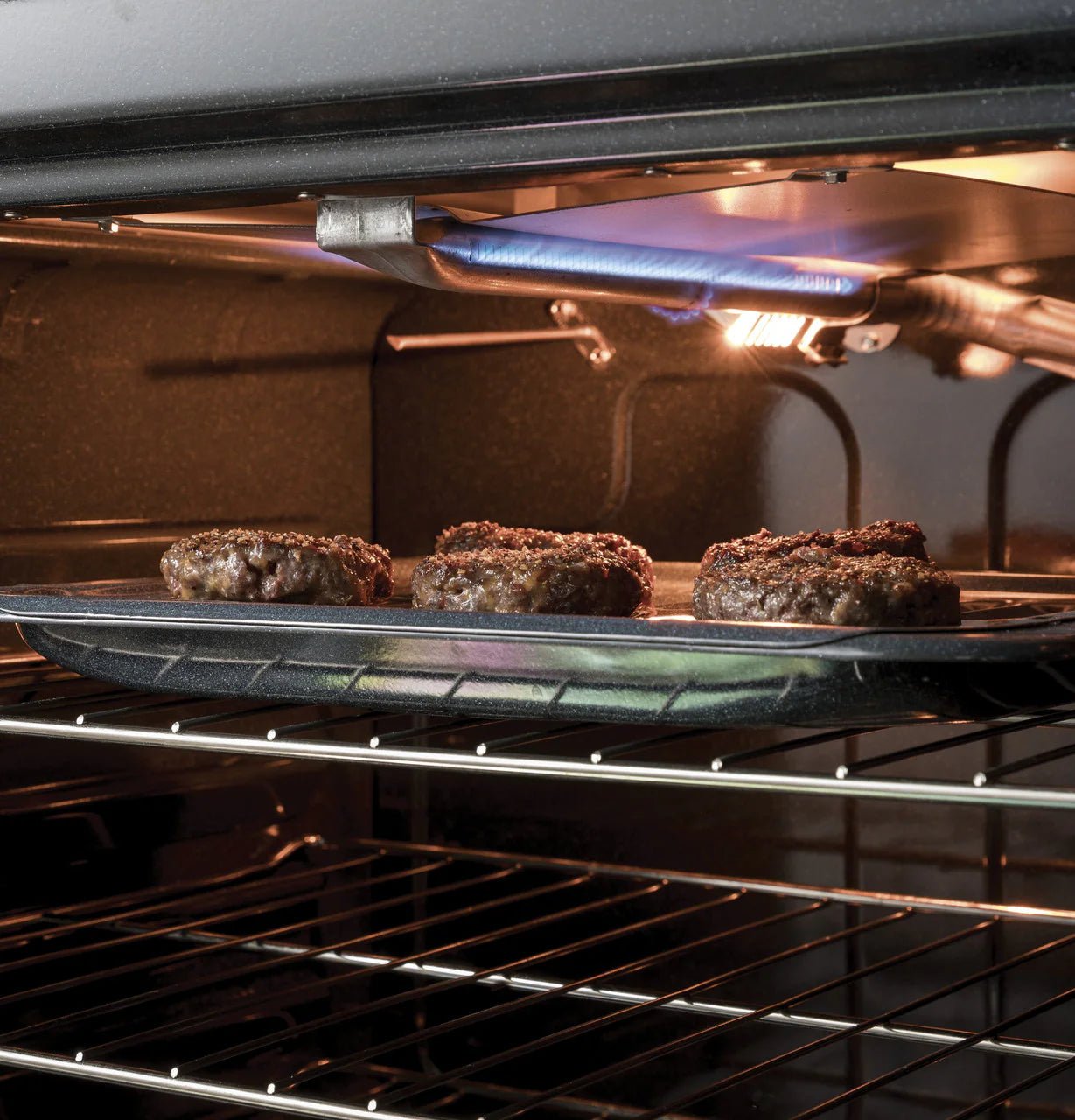

• In-oven broil – Enjoy healthier meals with convenient in-oven broiling.

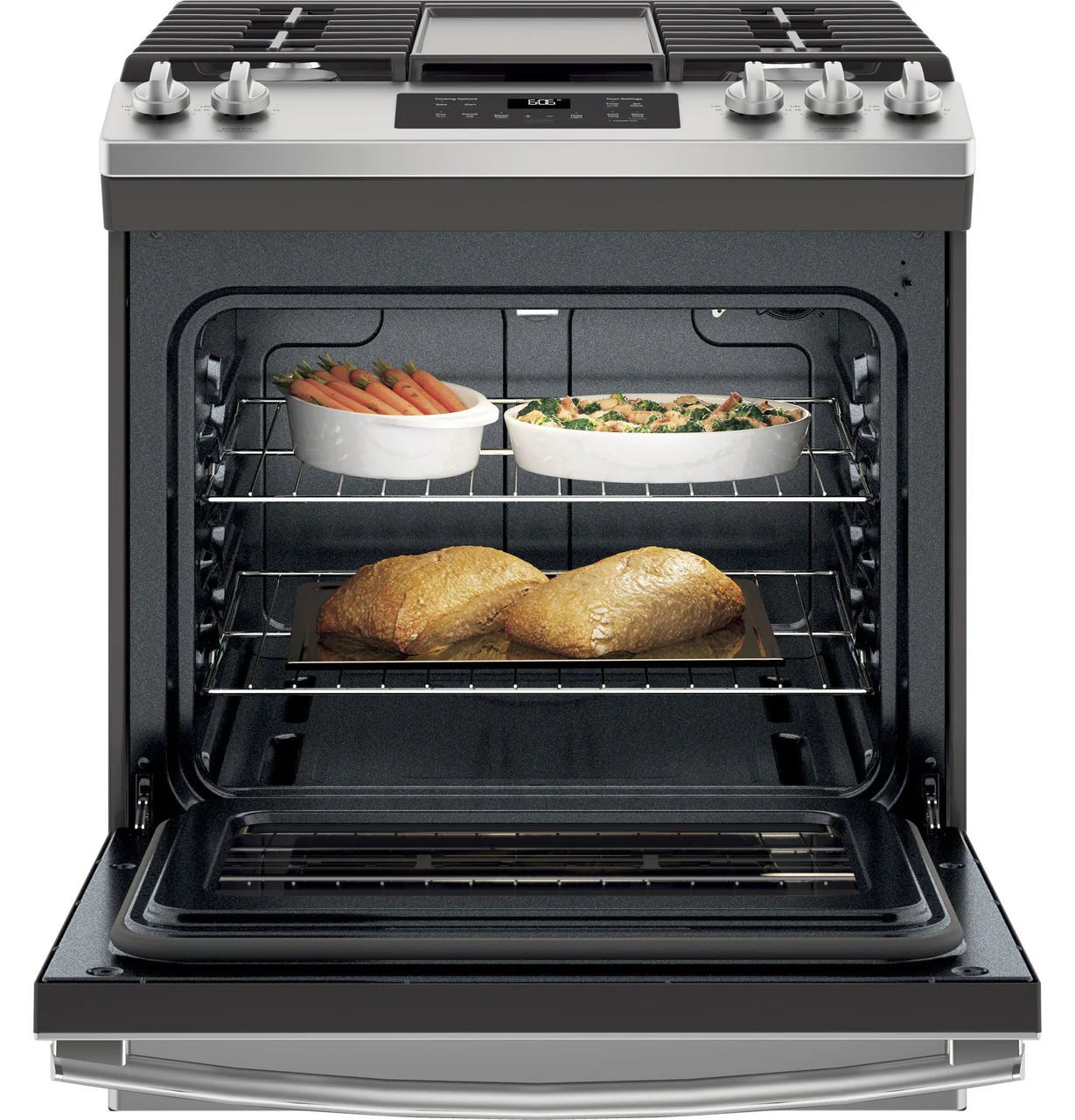

• 5.3 cu. ft. oven capacity – Fits large cookware and multiple dishes with ease.
• Heavy-duty, dishwasher-safe grates – Durable and easy to clean in the dishwasher.
• Dimensions: 36 1/4" H x 30" W x 29 1/4" D (92 cm x 76 cm x 74 cm)
• 220–240 Volts — Not for use in the USA (Export Only)



Specifications

ACCESSORIES

• Griddle Accessory: Integrated Griddle (Included)
• LP Conversion Kit: Included
• Trim Kit: Optional (JXFILLR1DD)

APPEARANCE

• Color Appearance: Stainless Steel
• Control Knobs: Stainless Steel
• Cooktop Burner Grate Color: Matte Black
• Handle: Designer Style
• Handle Color: Stainless Steel
• Installation: Flush Appearance, Free-Standing Cut-Out
• Oven Door Features: Big View Oven Window

CAPACITY

• Total Capacity: 5.30 cu ft

FEATURES

• Burner – Center: 10,000 BTU Oval
• Burner – Left Front: 15,000 BTU Power Boil
• Burner – Left Rear: 5,000 BTU Precise Simmer
• Burner – Right Front: 15,000 BTU Power Boil
• Burner – Right Rear: 9,500 BTU
• Configuration: Range with Storage Drawer

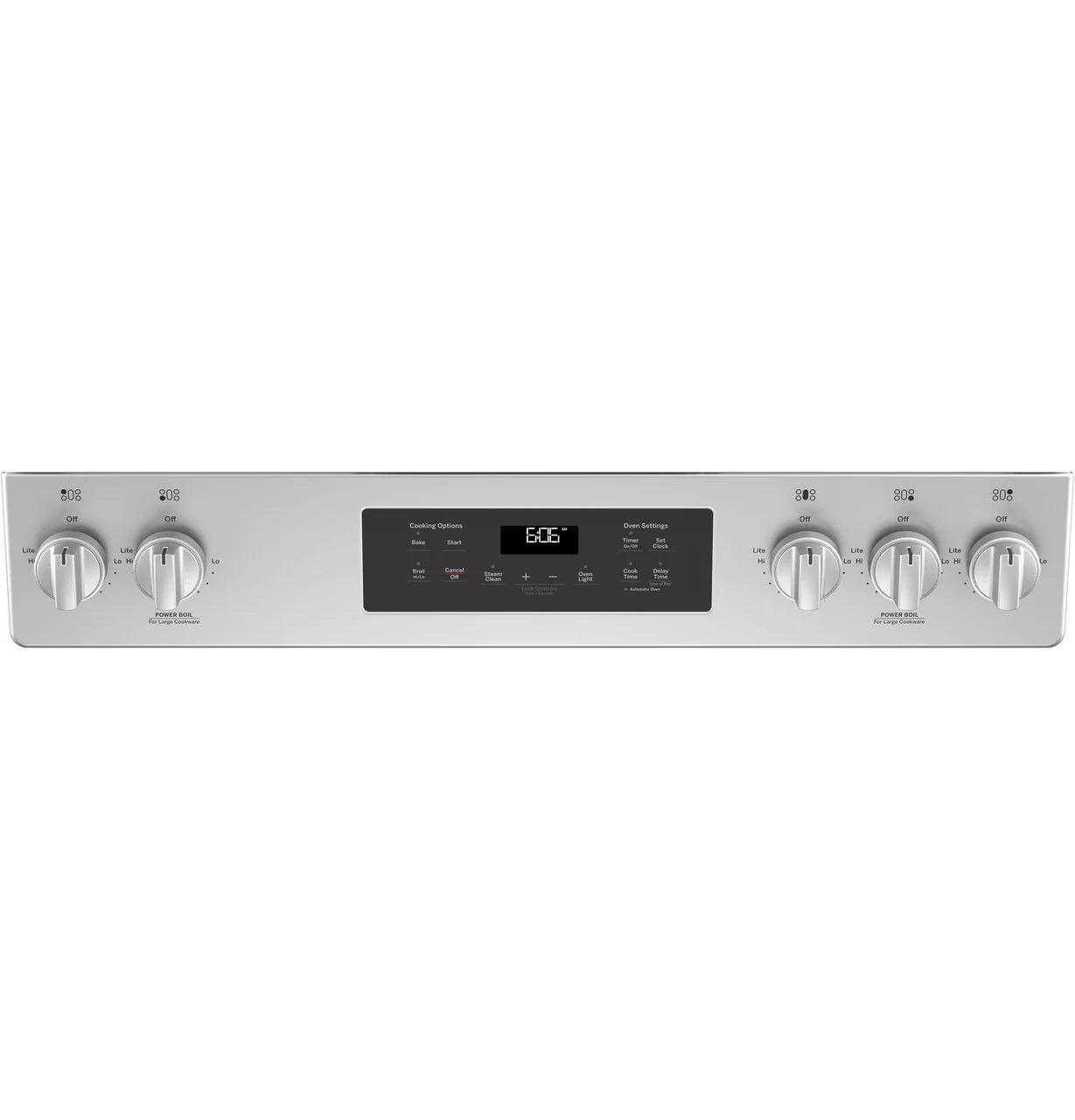

• Control Location: Front
• Control Type: Electronic Touch
• Cooking Technology: Traditional
• Cooktop Burner Grate Features: Continuous Grates, Dishwasher Safe
• Cooktop Burner Grate Material: Heavy Cast Iron
• Cooktop Burner Type: Sealed
• Cooktop Surface: Edge-to-Edge, Deep Recessed, Porcelain-Enamel, Gray
• Cooktop Type: Continuous Grates
• Drawer Type: Storage
• Fuel Type: Natural Gas
• Griddle: Integrated (Included)
• Ignition System: Electronic
• OU Certified: No
• Oven Cleaning Type: Steam Clean
• Oven Control Features: Audible Preheat Signal, Sabbath Mode, Control Lock
• Capability, Electronic Clock & Kitchen Timer
• Oven Interior: Gray, 1 Auto Incandescent Light
• Oven Rack Features: 2 Oven Racks
• Power Boil Burner: Yes
• Product Type: Slide-In Single Oven
• Sabbath Mode: Yes

POWER / RATINGS

• Bake/Broiler BTU Rating – LP: 16.0 Bake / 13.5 Broiler
• Bake/Broiler BTU Rating – Natural Gas: 16.0 Bake / 16.5 Broiler
• Top Burner BTU Rating – LP: (1) 15.0, (1) 9.5, (1) 15.0, (1) 5.0, (1) 8.0
• Top Burner BTU Rating – Natural Gas: (1) 15.0, (1) 9.5, (1) 15.0, (1) 5.0, (1) 10.0
• Volts/Hertz/Amps: 120V; 60Hz; 15A

WEIGHTS & DIMENSIONS

• Approx. Shipping Weight: 214 lb

• Net Weight: 194 lb
• Cabinet Width: 30 in
• Overall Width: 30 in
• Overall Height: 36 1/4 in
• Height to Cooking Surface: 36 1/4 ± 1/4 in
• Height to Top of Rear Vent Trim: 37 3/8 in
• Overall Depth: 29 1/4 in
• Depth without Handle: 26 3/4 in
• Depth with Door Open: 47 in
• Oven Interior Dimensions (W x H x D): 24 x 19.5 x 19.5 in
