Dynastar Royalty 17,800 Watts 220 volts 50 hz Diesel Generator Silent body with Optional ATS (automatic transfer switch) 220v 50hz

Dynastar Royalty 17,800 Watts 220 volts 50 hz Diesel Generator Silent body with Optional ATS (automatic transfer switch) 220v 50hz

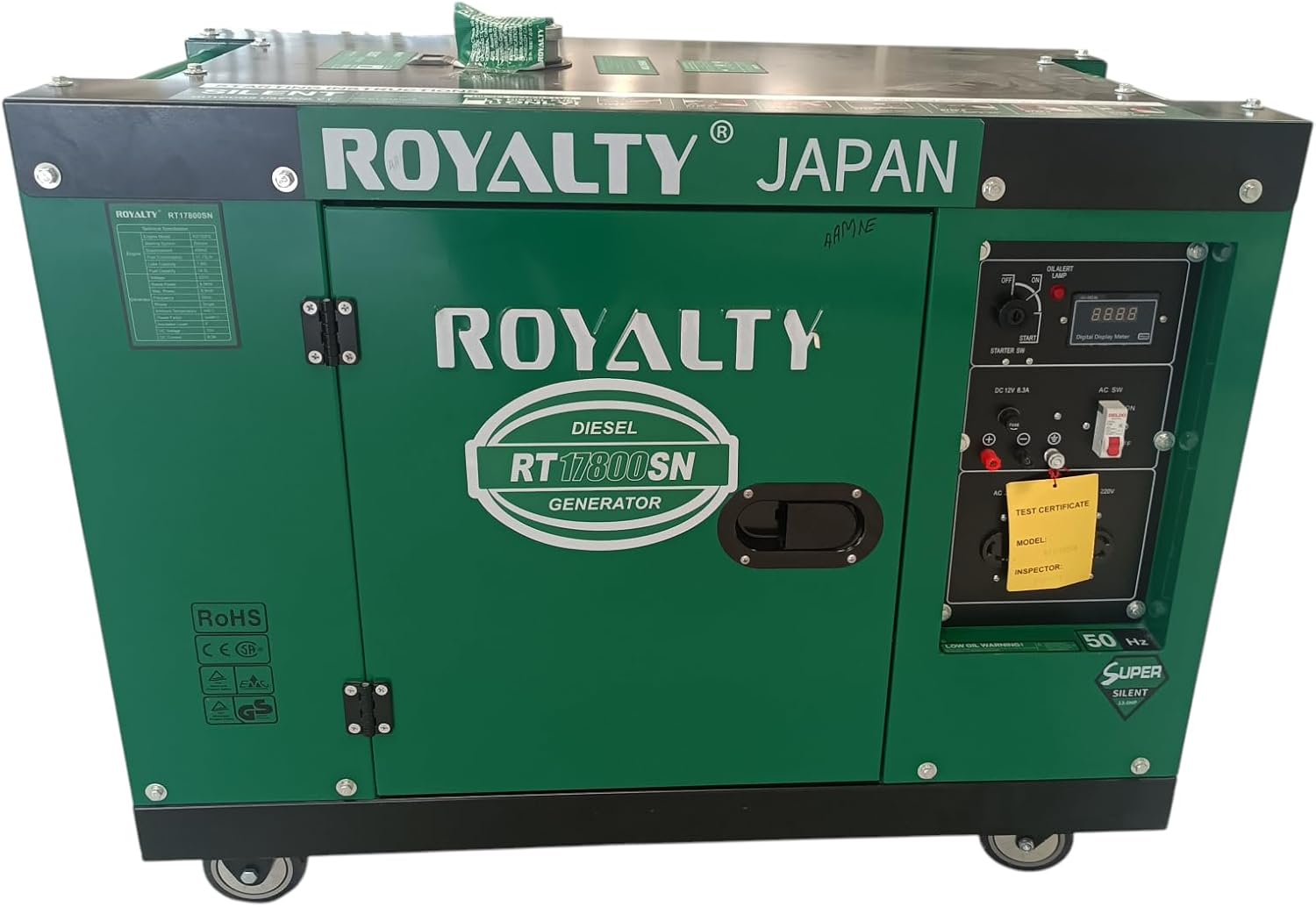

The ROYALTY RT17800SN offers a robust, large-capacity diesel standby generator solution built for 220 V, 50 Hz international markets. With a nominal rated power of 8.5 kW, maximum continuous output of 9.5 kW, and a peak of 17.8 kW, it is more than capable of serving a full house. The electric start, wheels for mobility, and optional ATS integration make it an ideal offering for homes, remote sites, or facilities needing reliable backup power. When paired with an ATS, it gives the homeowner automatic standby capability with seamless transition from utility outage to generator supply.

Key Features & Selling Points

• Designed for 220 V, 50 Hz single-phase operation — ideal for international residences, commercial premises or whole-house backup systems overseas.
• Peak output: 17 800 W (17.8 kW) → supports high-initial loads (motors, A/C compressors, pumps).
• Maximum continuous output: 9.5 kW (9 500 W).

• Nominal rated continuous power: 8.5 kW.

• Diesel-fuelled engine: rugged, fuel-efficient, long runtime.

• Electric start for ease of use

• Large fuel capacity: 14.5 litres → extended run time between refuels.

• Frame mounted with wheels for portability and onsite repositioning.

• Option: Automatic Transfer Switch (ATS) ready — plug-and-play for whole-house backup.

• With its power rating, in most typical homes this generator can supply enough power for the entire house (lighting, appliances, HVAC, kitchen etc.), making it an excellent choice for standby or primary backup power.

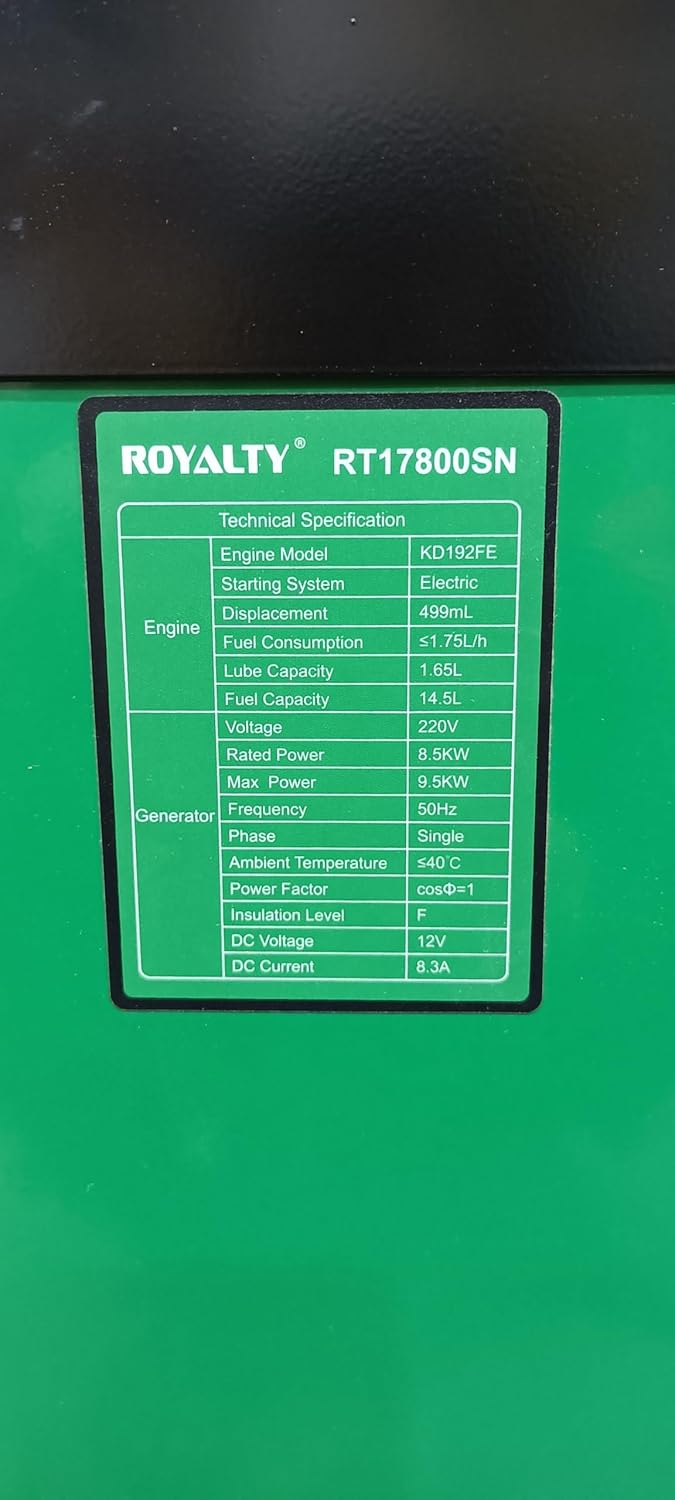

Technical Specification

• Engine model: KD192FE (single-cylinder, air-cooled, direct-injection diesel)
• Displacement: 499 mL (0.499 L

• Starting system: Electric start

• Fuel type: Diesel

• Fuel capacity: 14.5 L

• Lubrication (oil) capacity: 1.65 L

• Fuel consumption: ~51.75 L/h (as listed for this model)

• Voltage output: 220 V

• Frequency: 50 Hz

• Phase: Single phase

• Rated continuous power: 8.5 kW

• Maximum continuous power: 9.5 kW

• Peak output: 17800 watts

• Ambient temperature rating: Up to +40 °C

• DC output: 12 V DC, 8.3 A

• Mobility: Includes wheels for repositioning



Automatic Transfer Switch (ATS) — Option & How It Works

What is the ATS?

An Automatic Transfer Switch (ATS) is a smart switching device that monitors the utility (mains) power supply. When the normal power fails or drops below acceptable voltage/frequency thresholds, the ATS automatically signals the generator to start, and once the generator output is stable, it transfers the load from the utility supply to the generator supply. When utility power returns and is stable, the ATS switches the load back and the generator is shut down

How this applies with the RT17800SN:

• When the unit is installed with an ATS, you can have seamless standby power for your home or facility.
• During a mains outage, the ATS detects the failure → the RT17800SN starts automatically → when output is stable at 220 V/50 Hz, ATS switches the house circuits over.
• When mains returns, the ATS switches back to utility, the generator cools down, then shuts off.

ATS option:

• Convenience: no manual switching — protection even if you’re not present.
• Full-home coverage: with the RT17800SN sized for whole-house loads, the ATS allows the home to switch automatically into backup mode.
