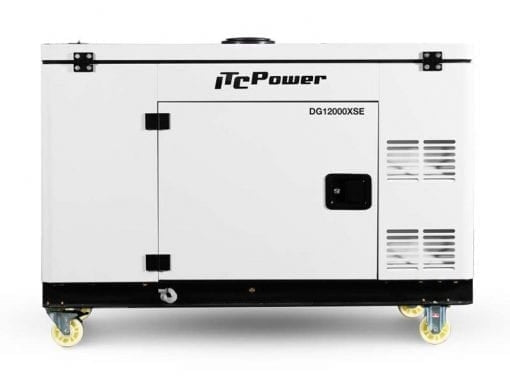

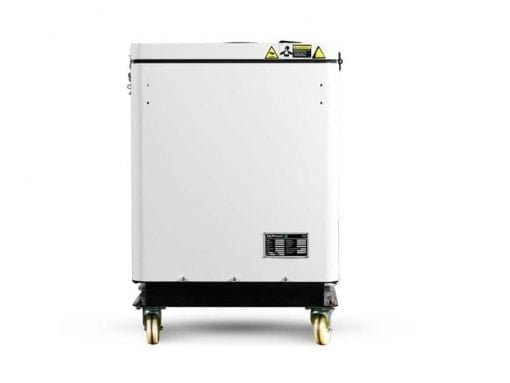

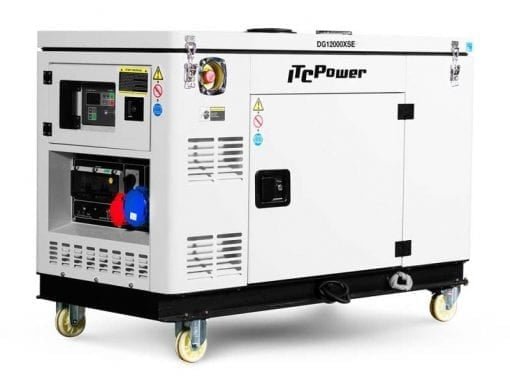

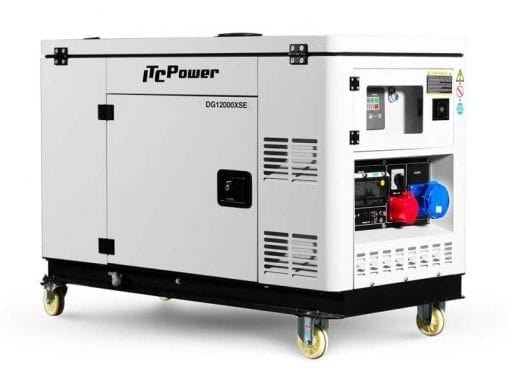

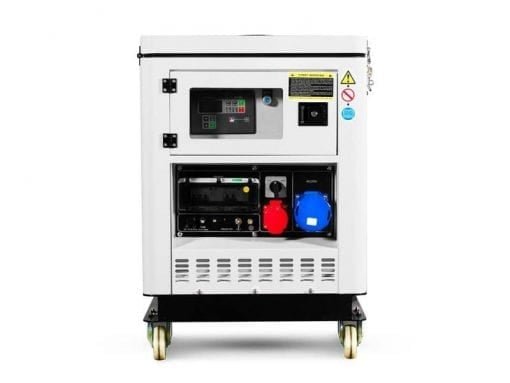

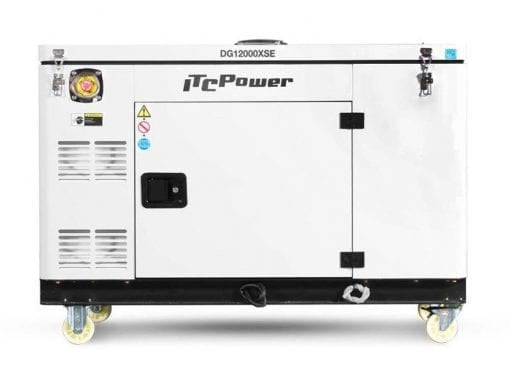

DG12000XSE3PH 220 Volt 50 Hz Diesel Generator
The DG12000XSE/3PH is a 220 volt generator designed for applications that require reliable three-phase or single-phase output. It provides a rated 9,000 watts of continuous power with a maximum of 10,000 watts, making it suitable for workshop tools, small commercial installations and backup power needs. As a 50 hz diesel generator, it matches regions operating on 50-hertz standards and supports equipment built for that frequency.
This model includes a strong EV80 V-type, two-cylinder engine that is water-cooled to maintain steady operating temperatures during longer sessions. The unit starts electrically and also supports remote start and stop, allowing easier control from a distance.
With a 30-liter fuel tank, the generator can run for up to seven hours at a 75 percent load, giving it the endurance needed for extended tasks. It carries an oil capacity of 2.27 liters, which helps the engine stay properly lubricated under continuous use.
The DG12000XSE/3PH includes 230-volt outlets for single-phase needs, while its three-phase capability allows connection to 400-volt systems when required. Users who work with both standards benefit from this flexibility, especially when a 220v setup is part of their workflow. For additional compatibility, the generator also fits situations where a 240 volts diesel supply is necessary, supporting equipment intended for higher voltage categories.
Its digital InteliNANO display presents clear information such as output voltage, current, frequency, operating hours, and real-time power delivery. This makes monitoring performance straightforward and allows operators to keep track of generator status at a glance. The machine operates at around 75 dBA at seven meters, balancing strong power output with manageable sound levels. With a dry weight of about 318 kilograms and overall dimensions of 1360 by 650 by 980 millimetres, it is built as a heavy-duty unit meant for stable placement rather than frequent movement.
Protection systems such as automatic overload shutdown, low-oil protection, and AVR-regulated current help keep both the generator and connected devices safe. The strong engine design, durable build, and ease of operation make this generator suitable for commercial or domestic environments where constant and dependable output matters. Warranty coverage supports up to 24 months or 1,000 hours for domestic use, and 12 months or 1,000 hours for commercial users.
Overall, the DG12000XSE/3PH brings together power, control, and endurance, offering a dependable option for users who need a 220 volt platform, a structured 50 hz output and the flexibility that comes with both 220v and 240volts deisel compatibility.
All Features
- Maximun AC Output: 10,000W / 10kW
- Rated AC Output (Prime): 9,000W / 9kw
- DC Output (Generator/Charger): 12V / 8.3A
- Rated Voltage: 230 (V)
- Current: 39A
- Rated Frequency: 50 (Hz)
- Remote Control: Yes. Start/Stop Remote Control
- Starting System: Electric
- Dry Weight (kg): 318kg
- Dimensions (LxWxH): 1360 x 650 x 980 (mm)
- Fuel Tank Capacity (liters): 30
- Oil Capacity (liters): 2.27
- Continuous Operating Hours: 7 hours @ 75% load
- Power Outlets: 1 x 230V 15A, 1 x 230V 32A
- Display: InteliNANO: Hour meter, Voltage (V), Current (A), Prime Power (kW), Frequency (Hz), etc.
- Cooling: Water Cooled Engine
- Sound Level @ 7m: 75dBA
- Engine Type: Powerful EV80, 2 cylinder, V type
- Recommended Fuel: Diesel
- WARRANTY: Domestic: 24 Months/1,000hours, Commercial: 12Months/1,000hours
